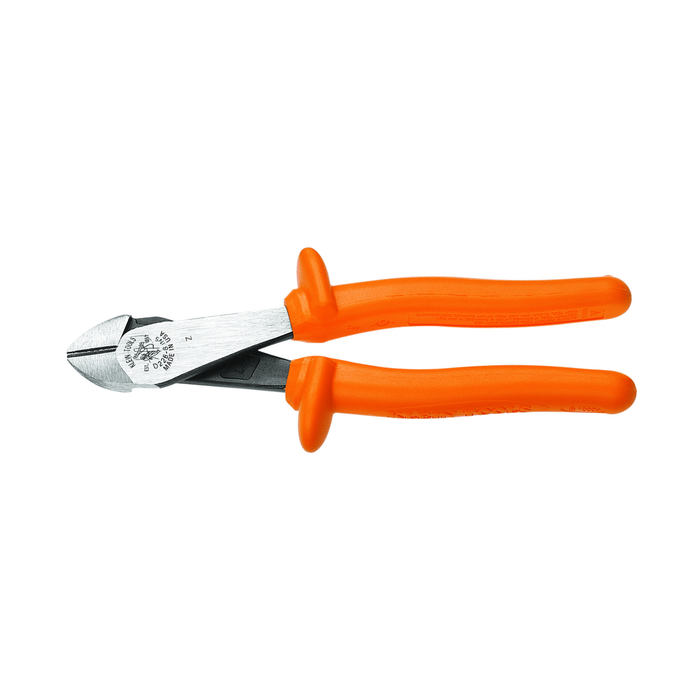

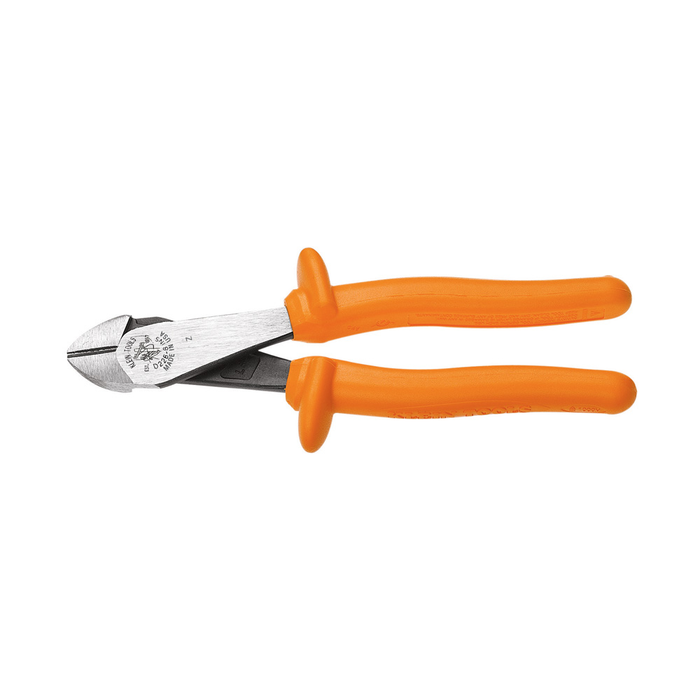

Diagonal Cutting Pliers, Insulated, High Leverage, 8-Inch
by Klein Tools
SKU D228-8-INS
Sold out
Original price
$59.95
-
Original price
$59.95
Original price
$59.95
$59.95
$59.95
-
$59.95
Current price
$59.95
In-Store Availability
Stock Status:
Limited Stock (1-2?)
Location:
Aisle 5
Aisle View
Tap to enlarge
In-Store Only — Visit us in Gap, PA to purchase
These High-Leverage Insulated Diagonal-Cutting pliers are 1000V rated for safety on the job. The thick, exceptionally tough white inner layer coating is bonded to the tool. Integral thumb guards prevent hand contact with conductive parts. The bright orange handles make this tool comfortable to use all day and easy to identify in the field. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools. Cutting knives are induction hardened for long life.
Warnings
- Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
- Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
- Wear approved eye protection.
- Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
Features
- High-leverage design. Rivet is closer to the cutting edge for 36-percent greater cutting power than other plier designs
- Individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
- A flame retardant, impact-resistant, bright orange outer coating
- Integral guards help prevent hand contact with conductive parts
- Made of forged steel for maximum durability
- Made in USA
- Klein Tools Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol

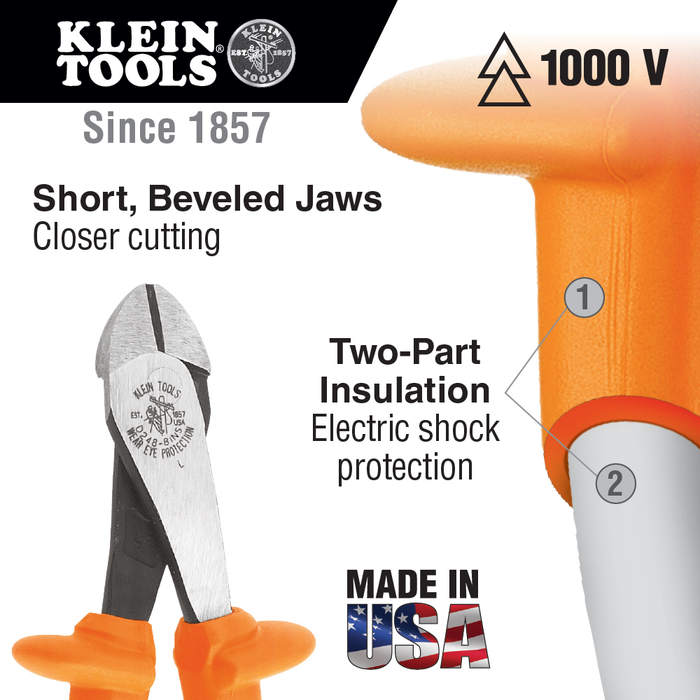

- Two layers of insulation provide protection against electric shock
- Flame Retardant and Impact Resistant Handle
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
- Klein Tools Pliers are individually tested to meet or exceed ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools, and clearly marked with the official 1000-volt rating symbol
Specifications
- Handle Finish: 2-Layer Insulation
- Application: ACSR, Screws, Nails and Most Hardened Wire
- Jaw Width: 1.25" (3.2 cm)
- Hande Finish: 2-Layer Insulation
- Item: Diagonal-Cutting
- Material: Induction Hardened Steel
- Joint Type: Hot-Riveted
- Nose Type: Tapered
- Cut Style: Diagonal-Cutting
- Overall Length: 8.24" (20.9 cm)
- Cutting Knives: Standard
- Handle Color: Orange
- Configuration: Tapered Nose
- Jaw Length: 0.781" (2 cm)
- Country of Origin: United States
- Standard: IEC 60900 and ASTM F1505
- Insulated: Yes
- Handle Length: 4.9" (12.4 cm)
- Width: 3.1000 in
- Jaw Thickness: 0.46" (1.2 cm)
- Depth: 8.2500 in
- Type: Diagonal Cutting Pliers
- Height: 0.4380 in
- Style Name: Standard
- Weight: 0.7000 lbs
