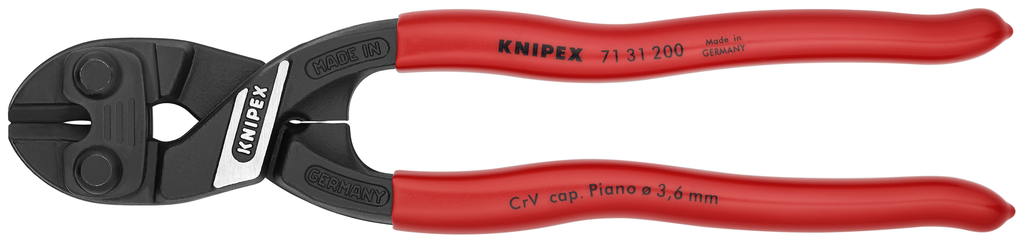

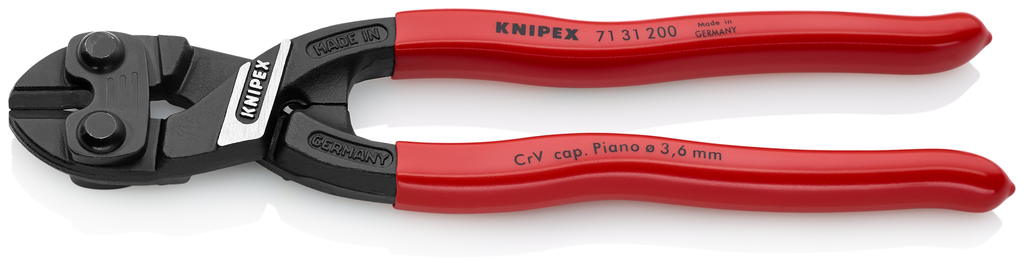

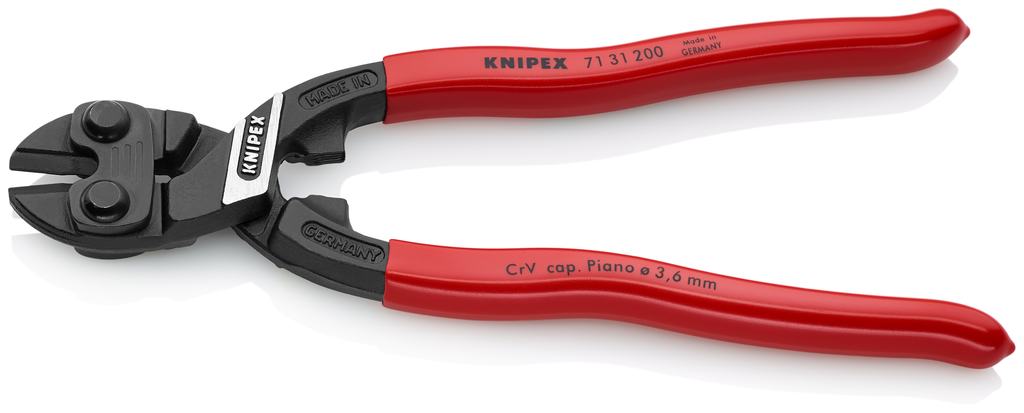

High Leverage CoBolt® Cutters w/ Notched Blade

Exceptional cutting performance: 60% less effort compared to conventional high leverage diagonal cutters. The lever-action mechanism ensures an extremely favorable lever ratio with very little friction. The cutting force is about 20 times higher than hand force applied. Induction hardened edges cut soft, hard and piano wire. Cuts materials like bolts, nails, rivets, etc. up to 1/4" dia. Cutting edge hardness approx. 64 HRC. Recess in the blade allows easier cutting of thicker wires, e.g. for anchor bolts in the false ceilings. Gripping surface below the joint for gripping and pulling wires with a diameter from 3/64". Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened.

Features

• Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
• Induction hardened cutting edges (approx. 62 HRC) for cutting soft and hard wire
• Cuts materials like bolts, nails, rivets, etc. up to 5/32" dia. for hard wire

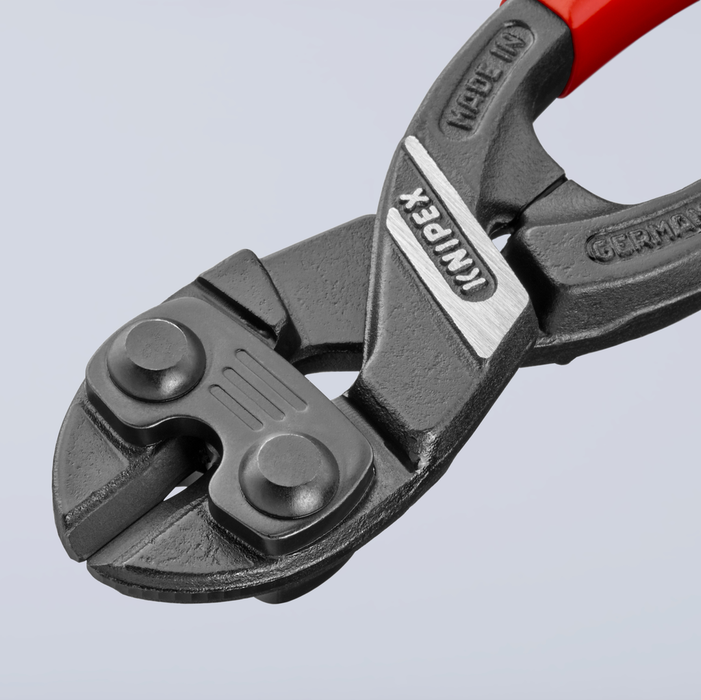

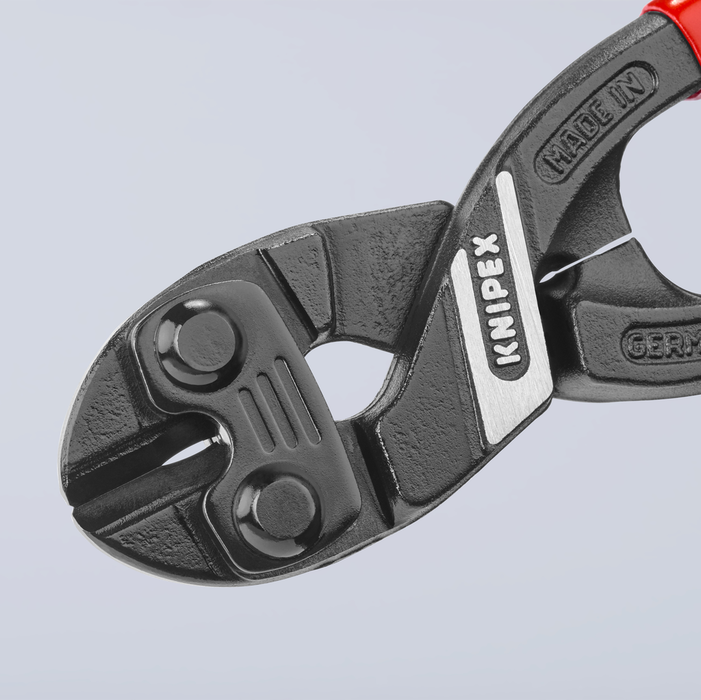

• Recess in the blade allows easier cutting of thicker wires, the wire won't slip out

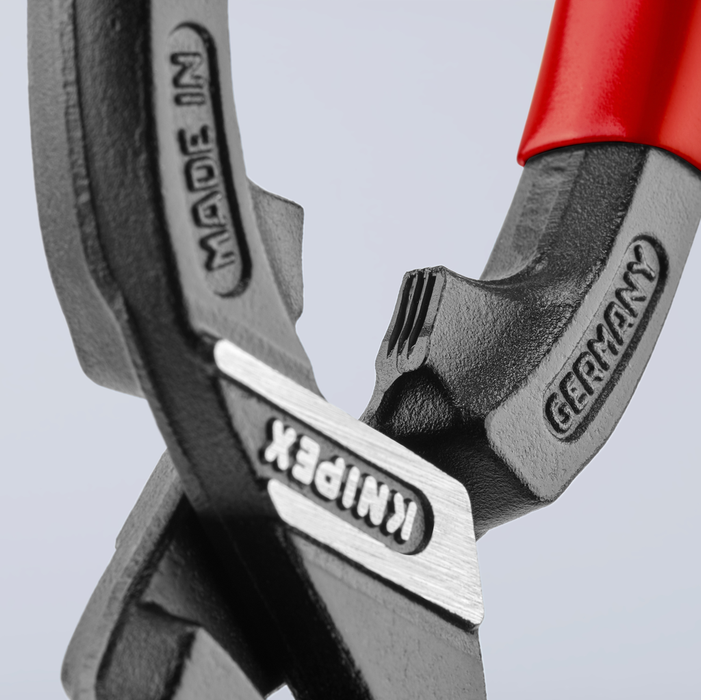

• Gripping surface below the joint for gripping and pulling wires with a diameter from 3/64"
• The CoBolt® cutters with reduced cutting edge hardness to allow more pressure on the sides of the cutting edges (e.g. for making fences)
• Exceptional cutting performance with minimum effort because of new lever action design

Specifications

• 1000 Volt Insulated: No
• Surface Finish: Black atramentized
• Cutting Capacity - Piano Wire: 9/64"
• Cutting Edge HRC: Approx. 64 HRC
• Cutting Capacity - Medium Hard Wire (Nail): 13/64"
• Cutting Capacity - Hard Wire (Steel Wire): 5/32"
• Cutting Capacity - Soft Wire: 1/4"
• Material Type: Chrome Vanadium Heavy-Duty Steel, Forged, Multi Stage Oil-Hardened
• Handle Type: Plastic Coated
