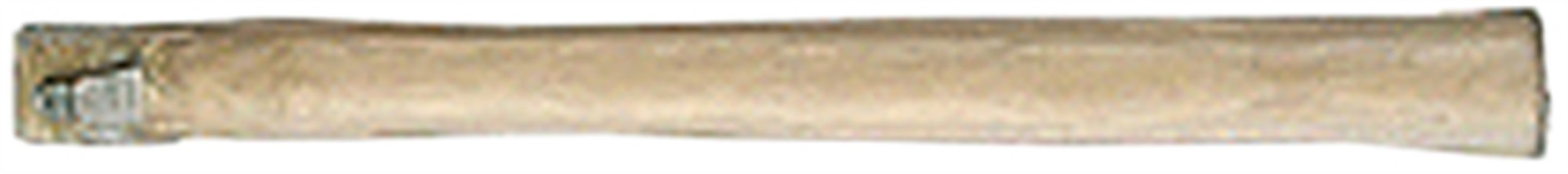

Handle for HRP24B Hammer

Overview

The Handle for HRP24B Hammer (65711GRA) is designed for replacement use on Engineer and Blacksmith Hammers with 3–4 lb. heads, providing a ready-to-install wood handle solution compatible with Seymour and Structron hammer heads.

Technical Features

• Wood construction with wax finish: The wax-coated wood surface reduces friction and moisture absorption, extending the service life of the handle under repeated-use conditions.

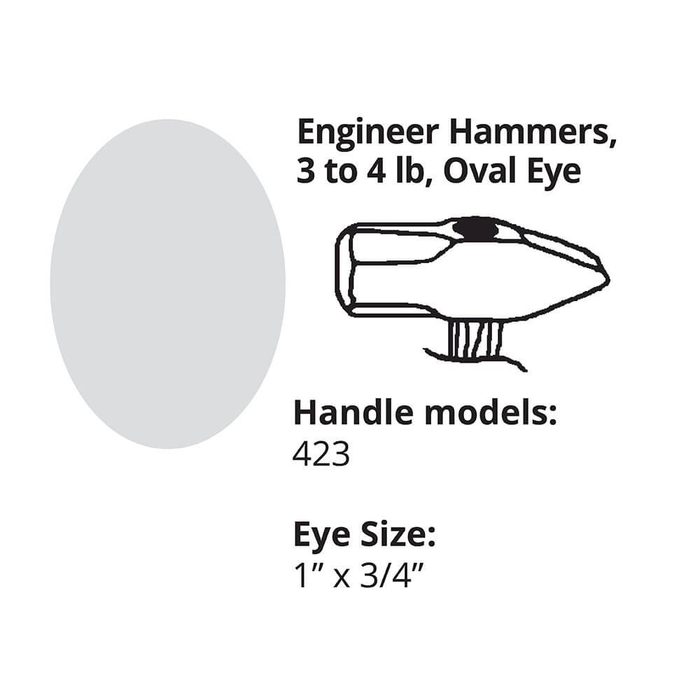

• Oval eye profile measuring 3/4 in × 1 in: Engineered to precise tolerances to ensure a secure, properly aligned fit when mounting compatible engineer or blacksmith hammer heads.
• 16-inch overall length: Provides a controlled swing radius suited to the striking force requirements of 3–4 lb. hammer heads used in engineer and blacksmith applications.
• Dual-wedge attachment system (1 steel wedge + 1 wood wedge included): The combined steel and wood wedge securement method locks the head firmly onto the handle, reducing the risk of head loosening during heavy use.
• Rated for 3–4 lb. maximum head weight: Sized and rated specifically for this head weight range, preventing overloading the handle beyond its structural design parameters.
• Plain grip style: Uncontoured surface allows the user to position their grip freely along the handle length as the task requires.

Applications

• Replacement handle for Engineer or Blacksmith Hammers with 3–4 lb. heads
• Compatible with Seymour and Structron brand hammer heads featuring an oval eye opening of 3/4 in × 1 in
• Suitable for metalworking, blacksmithing, and heavy-duty striking tasks requiring a controlled, mid-length handle
