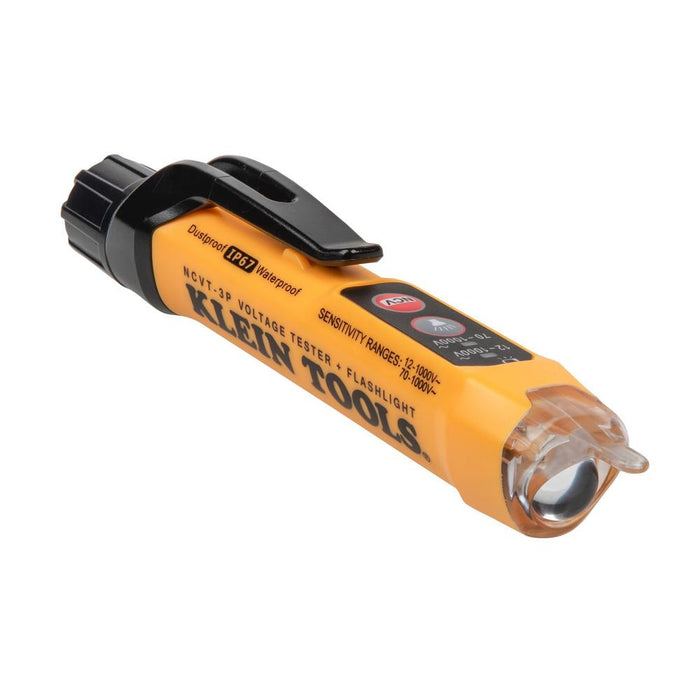

Dual Range Non-Contact Voltage Tester with Flashlight, 12 to 1000V AC

The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.

Features

• CAT IV 1000V rating provides expanded operation and protection
• Flashlight, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
• IP67: Dustproof and waterproof
• Dual modes indicates low voltage (12 to 70V AC) and standard voltage (70 to 1000V AC) allowing broad application
• Detects voltage with simultaneous visual and audible voltage indicators
• US Patent 10,073,142, D750,985 and other patents pending
• Bright flashlight illuminates work area and may be used independent of voltage detection function
• Screw-thread battery cap with O-ring ensures protection against dust and water ingress
• Lightweight, compact tool with pocket clip provides convenient storage and quick access
• Auto power-off feature conserves and extends battery life
• Conforms to CE requirements
• 6.6-Foot (2 m) drop protection
• Green light indicates no voltage

Warnings

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.

Specifications

• Overall Height: 2.4 cm (0.93 Inch)
• Height: 0.9300 in
• Pollution Degree: 2
• Overall Width: 2.8 cm (1.09 Inch)
• Batteries: 2 x AAA
• Weight: 0.1040 lbs
• Material: Polycarbonate
• Width: 1.1400 in
• Standard: CAT IV 1000V
• Overall Length: 5.7 Inch (14.5 cm)
• Drop Protection: 6.6' (2 m)
• Battery Life: 125 hr
• Depth: 5.7000 in
• Type: Dual Range with Flashlight
• Frequency: 50 - 500 Hz
• Included: NCVT; Batteries
• Application: Non-Contact Detection and Testing of AC Voltage
• Voltage: 12 – 1000V AC; 70 – 1000V AC
• Ingress Protection: IP67 - Dustproof and Waterproof
