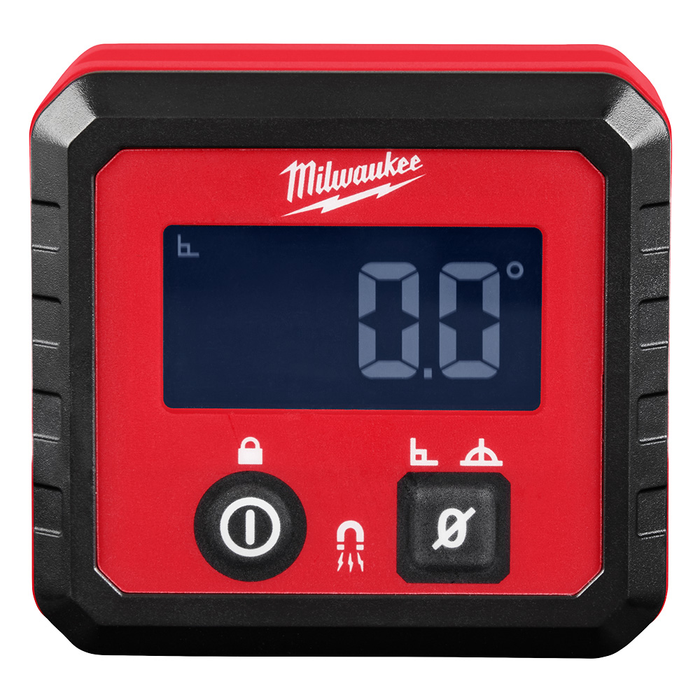

Digital Angle Gauge

The MILWAUKEE® Digital Angle Gauge provides easy digital navigation by displaying functions and information clearly. The Digital Angle Gauge also includes an auto-rotating display, and angle assist arrows that point to the nearest 90-degree, so angles can be assessed quickly. The real-time measurements save time by reducing unnecessary screen delays. It also features a zero function to replicate angles, and a locking measurement button to reference angles. The amplified rare earth magnets securely attach regardless of orientation, increasing productivity. The Milwaukee® Digital Angle Gauge is backed by a limited lifetime warranty.

Features

• Auto-shutoff feature saves battery life
• Quick Readings, Real Time Measurements
• IP42 Rating protects against water and dust
• Power/Hold Button saves measurement on display, or shuts off the product
• 0 to 90-Degree and 0 to 180-Degree Measurement Ranges
• Quick Angle Finding
• Limited Lifetime Warranty (Excludes Batteries)
• Zero/Range button enables relative angle or toggles between ranges
• Amplified Rare-Earth Magnets

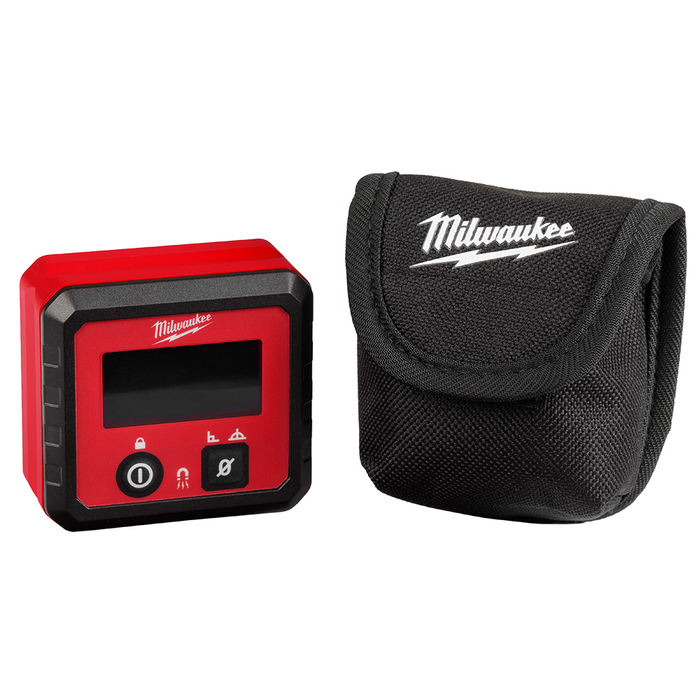

• Soft Carrying Case and Two AAA batteries Included

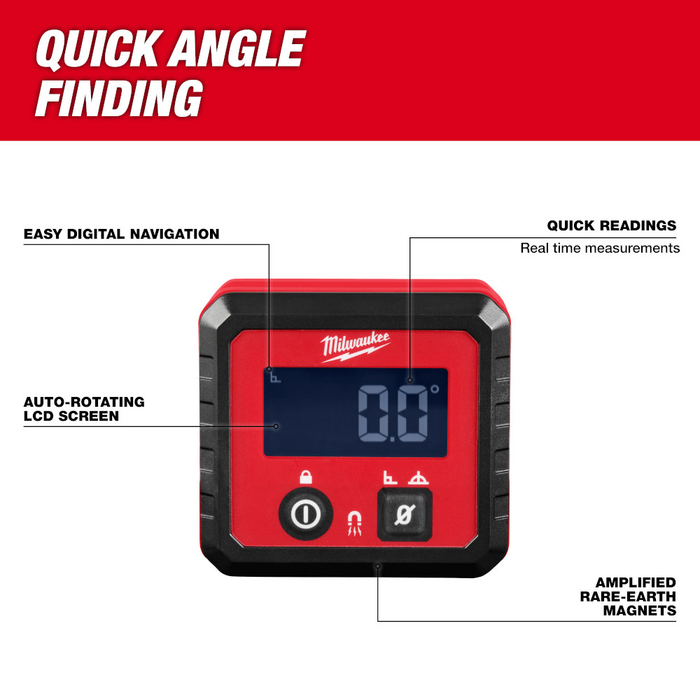

• Auto-Rotating LCD Screen
• Easy Digital Navigation

Specifications

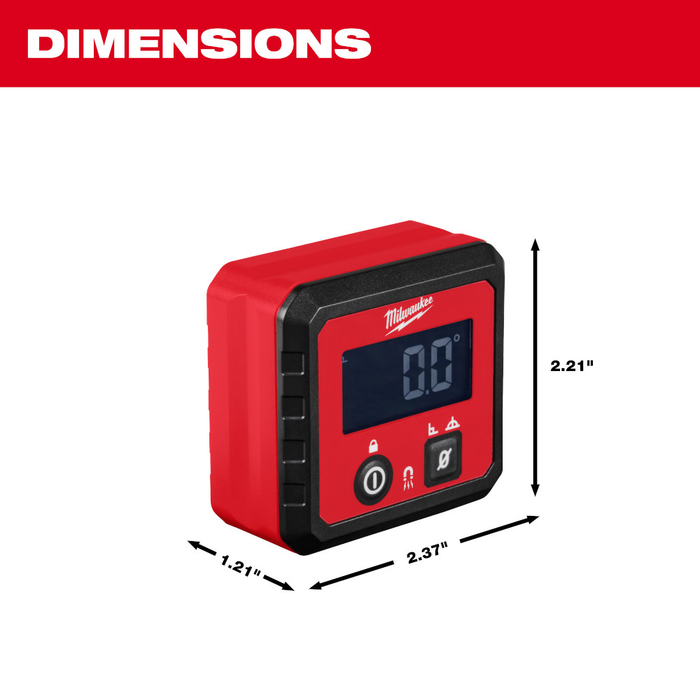

• Gauge Length: 2.37 in
• Material: ABS Plastic
• Internal Memory: No
• Accuracy: (59° - 77° F) (using magnetic base) +/- 0.1° at 0 ° to 1°, 89° to 90°, 179° to 180° +/- 0.2° at all other angles
• Measuring Tool Type: Angle Finder

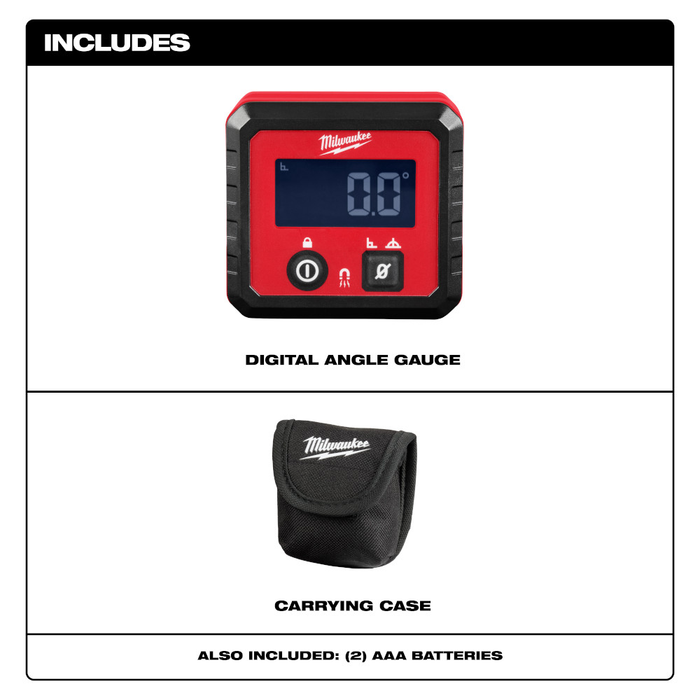

• Additional Contents: Carrying Case, (2) AAA Batteries
• Country of Origin: China
• Color / Finish: Black, Red
• Measuring Range: 0 to 90-Degree; 0 to 180-Degree
• Magnetic: Yes
• Gauge Display Type: Digital
• Gauge Width: 1.21 in
