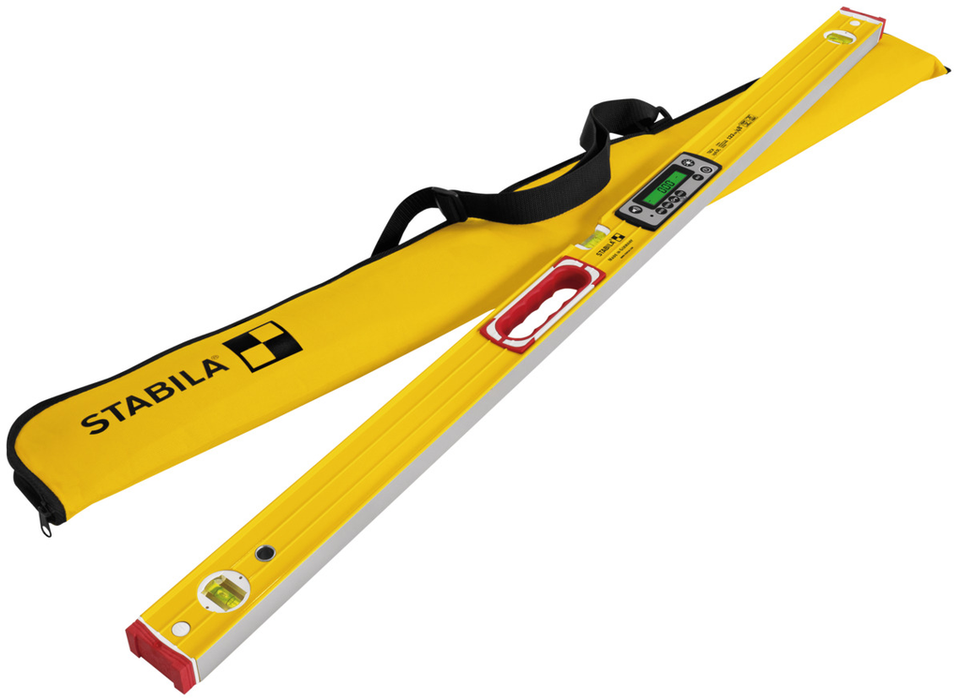

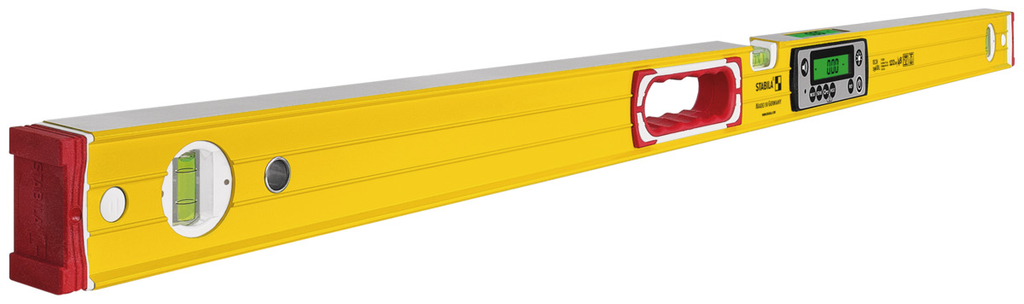

TECH 196 DL digital spirit level, 48″ / 122 cm
by Stabila
SKU 39548
Sold out
Original price
$325.00
-
Original price
$325.00
Original price
$325.00
$325.00
$325.00
-
$325.00
Current price
$325.00
In-Store Availability
Stock Status:
3+
Location:
South East wall
In-Store Only — Visit us in Gap, PA to purchase

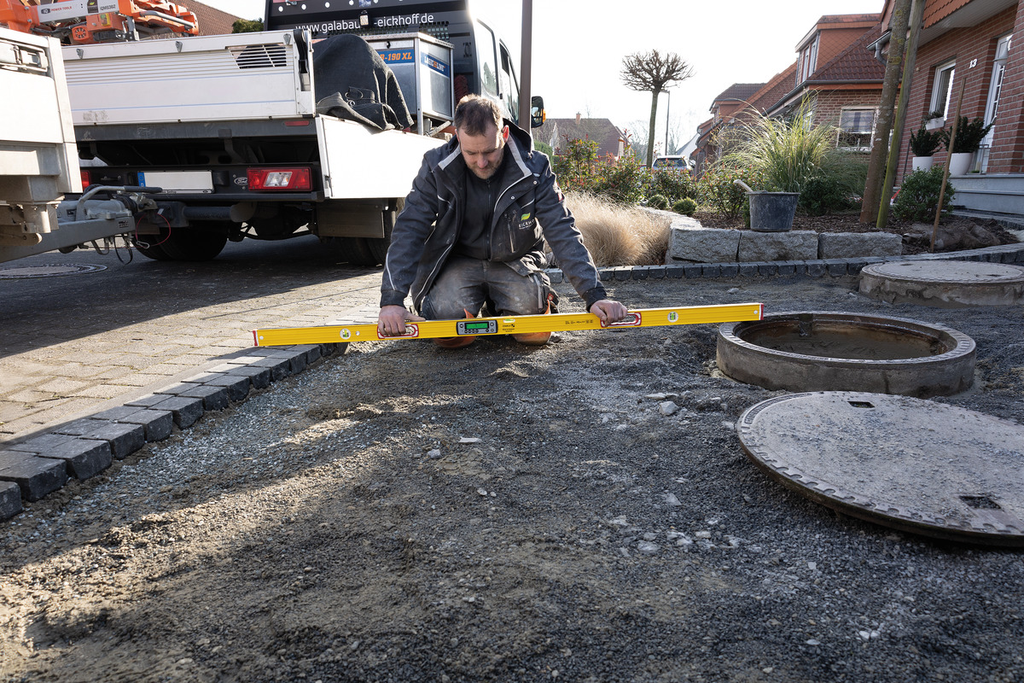

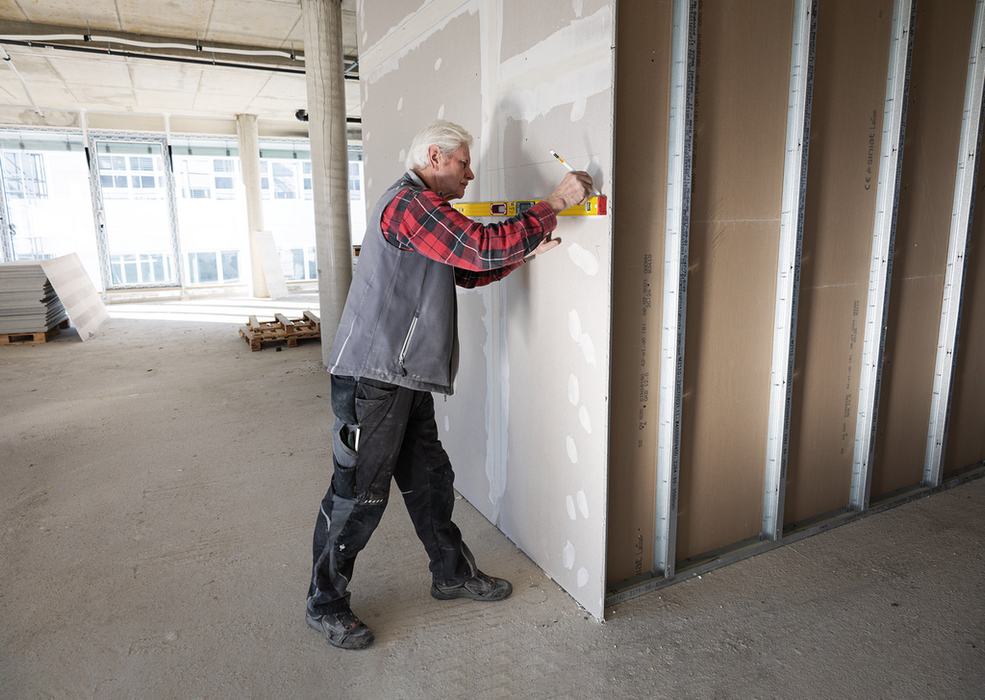

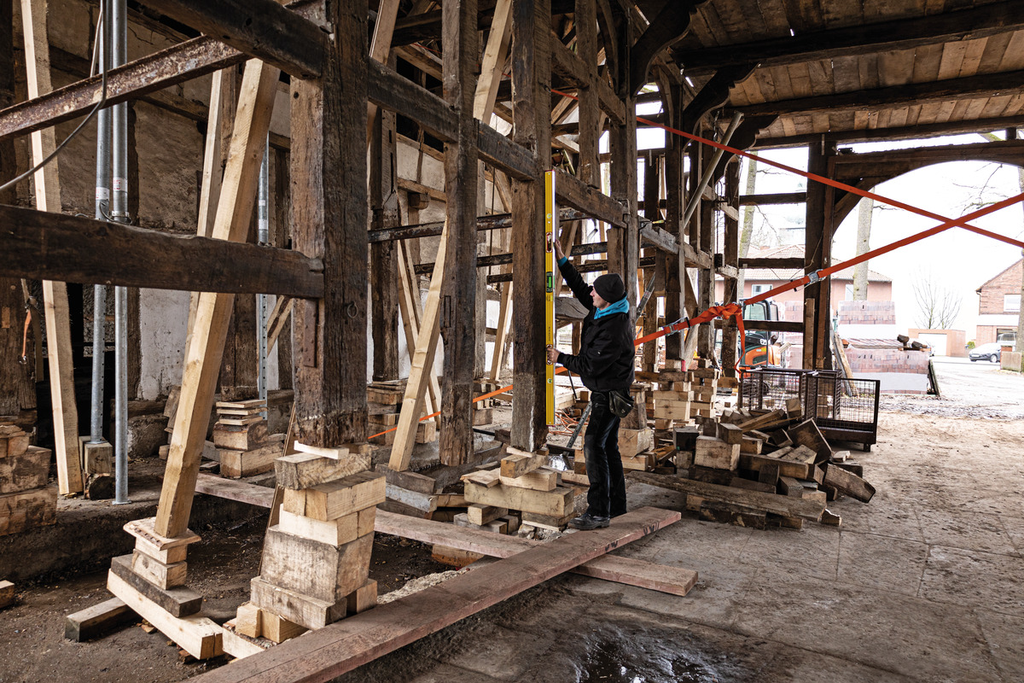

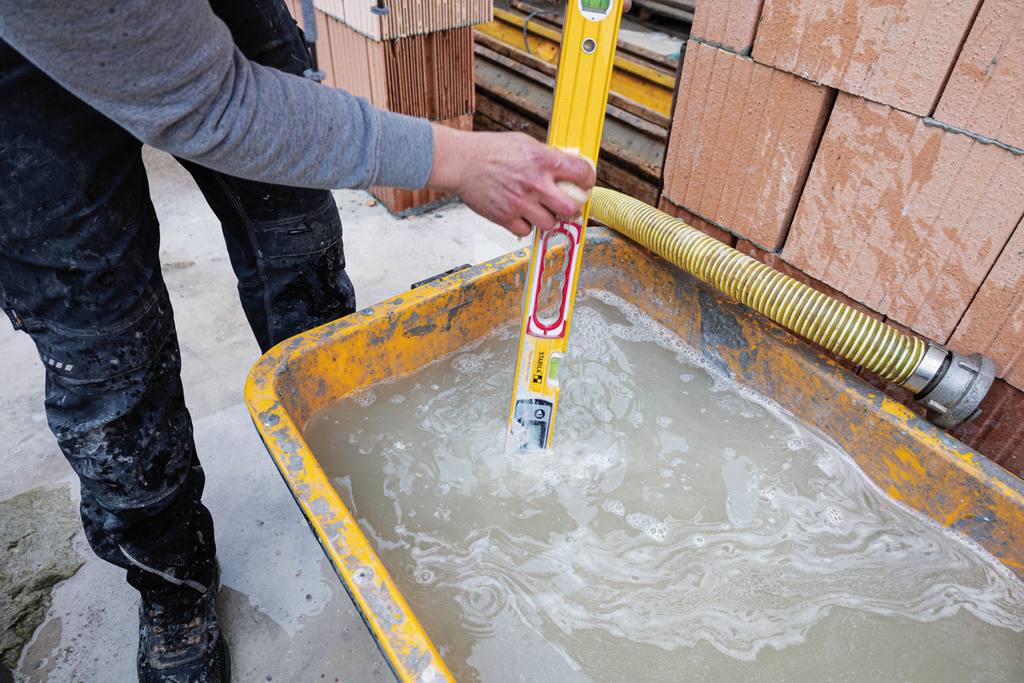

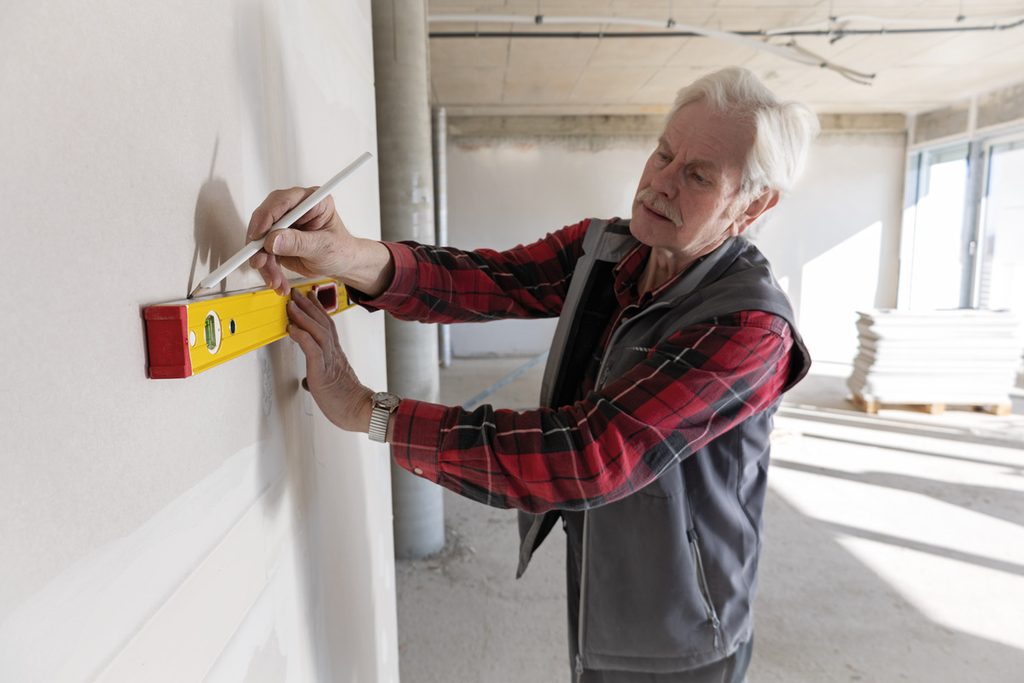

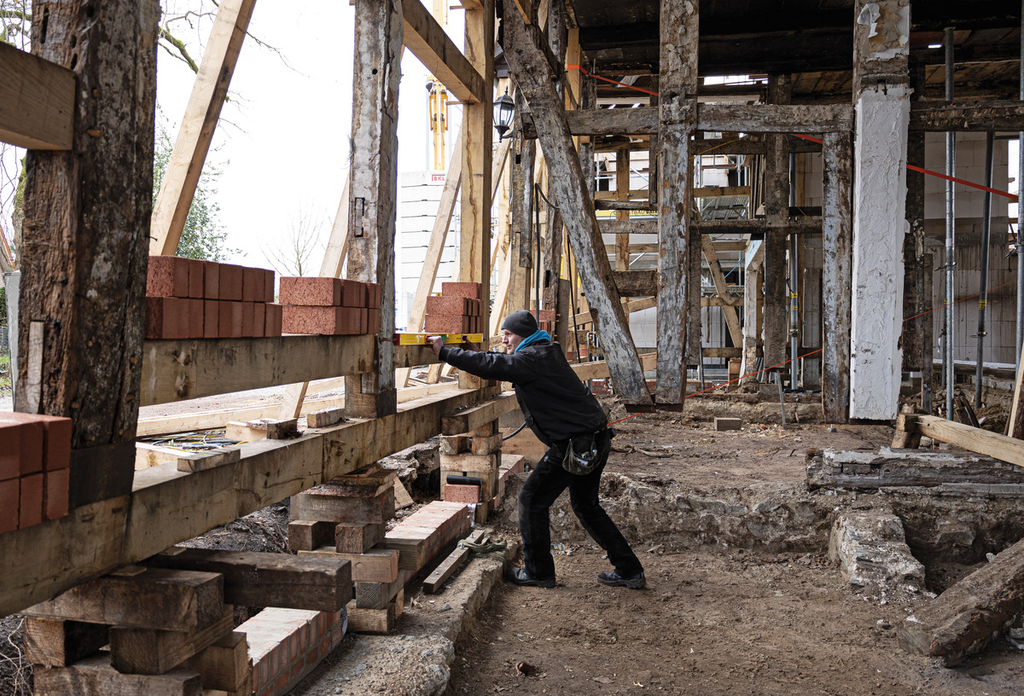

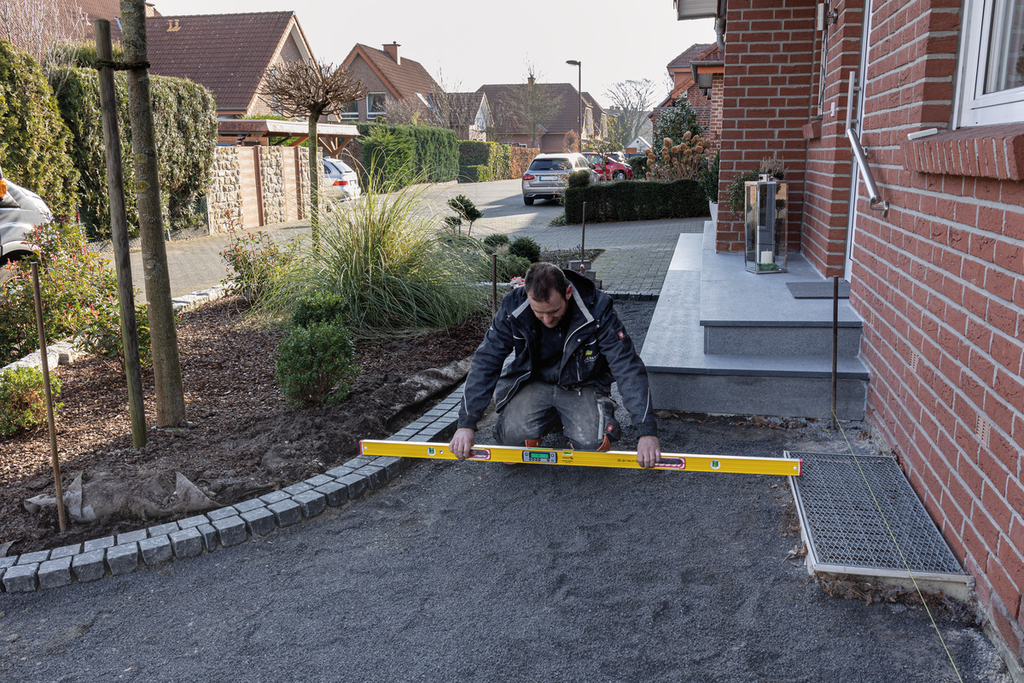

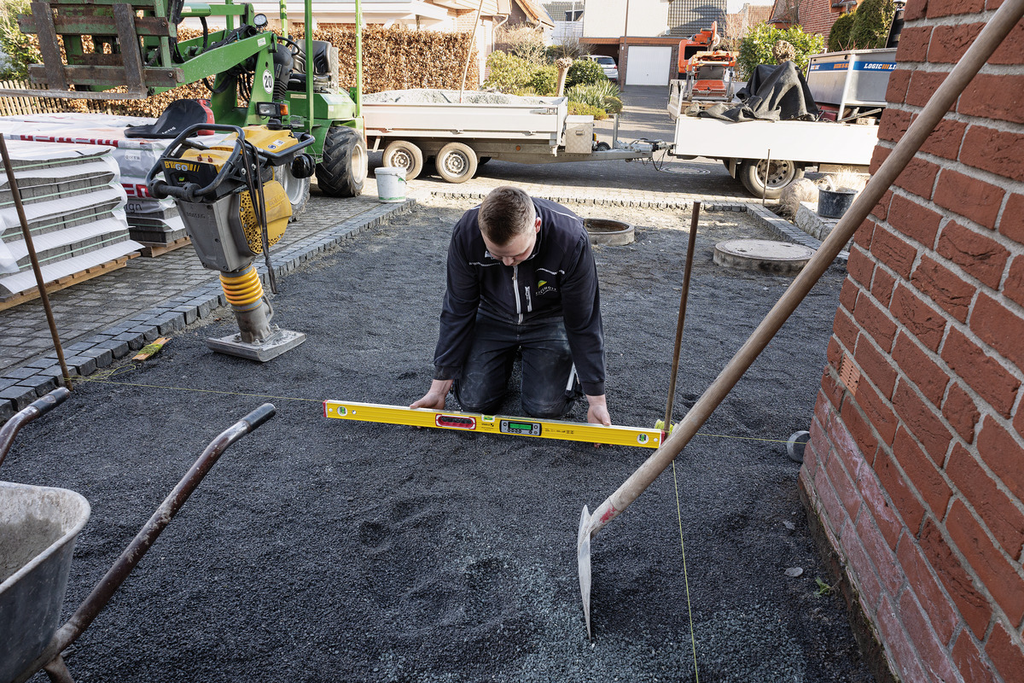

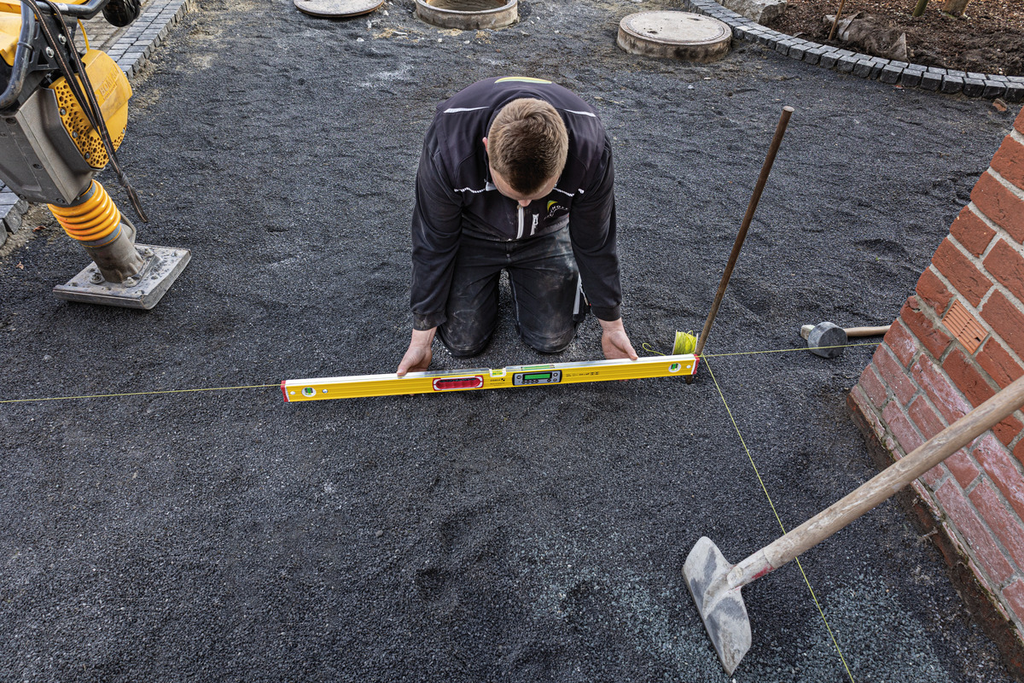

Water, dirt and impacts – tools have to take a lot. With the TECH 196 DL electronic spirit level, you are ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated – even after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with illumination, acoustic guidance and numerous display modes. State-of-the-art technology for productive work.
Features
- Instant measurement
- ULTRA-PROTECT – optimum protection against dust and water in accordance with IP 67
- CAL-FREE – calibration-free electronics, even after falling or being exposed to temperature fluctuations
- Two digital displays with optimal read-out in any application situation
- Acoustic guidance with two different audible signals
Specifications
- Width Incl. Sales Packaging: 123 millimeter
- Accuracy with electronic inclination measurement at 1° to 89° +/-: 0.1 °
- Material: Aluminium
- Profile: Rectangular profile with ribs
- Battery type: AA
- Number of vials: 3
- Protection class: IP 67
- Country of Origin: Germany
- Width: 3,00 cm
- Number of measuring surfaces: 2 pc.
- Min. operating temperature (Fahrenheit): 14 °F
- Min. storage temperature (Fahrenheit): -4 °F
- Measuring modes: °, %, mm/m, inch/ft
- Accuracy with electronic inclination measurement at 0° and 90° +/-: 0.05 °
- Max. operating temperature: 50 °C
- Height: 6,00 cm
- Measurement accuracy in normal position: ±1/32in @ 72in
- Max. operating temperature (Fahrenheit): 122 °F
- Operating life: 400 h
- Weight Incl. Sales Packaging: 1894 grams
- Finger-grip opening: Yes
- Weight Paper/Cardboard: 249,0 grams
- Max. storage temperature: 65 °C
- Length Incl. Sales Packaging: 1270 millimeter
- Length: 48,00 cm
- Number of vertical vials: 2 pc.
- Number of finger-grip openings: 1 pc.
- End caps: Removable / Wall Grips / Shock Absorbing
- Number of horizontal vials: 1 pc.
- Min. operating temperature: -10 °C
- Min. storage temperature: -20 °C
- Max. storage temperature (Fahrenheit): 149 °F
- Number of batteries: 2 pc.
- Dimensions Including Sales Packaging: 1270*123*52 millimeters
- Height Incl. Sales Packaging: 52 millimeter
- Measuring surface, milled: Yes
- Reverse measurement: Yes
- Weight: 1,394 kg
- Colour: Yellow
- Measurement accuracy in reverse position: ±1/32in @ 72in
