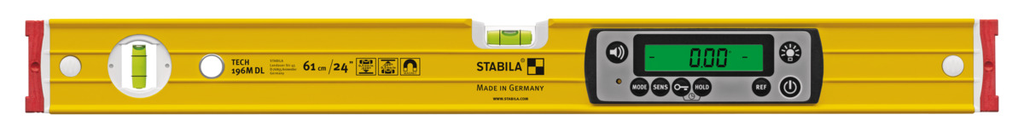

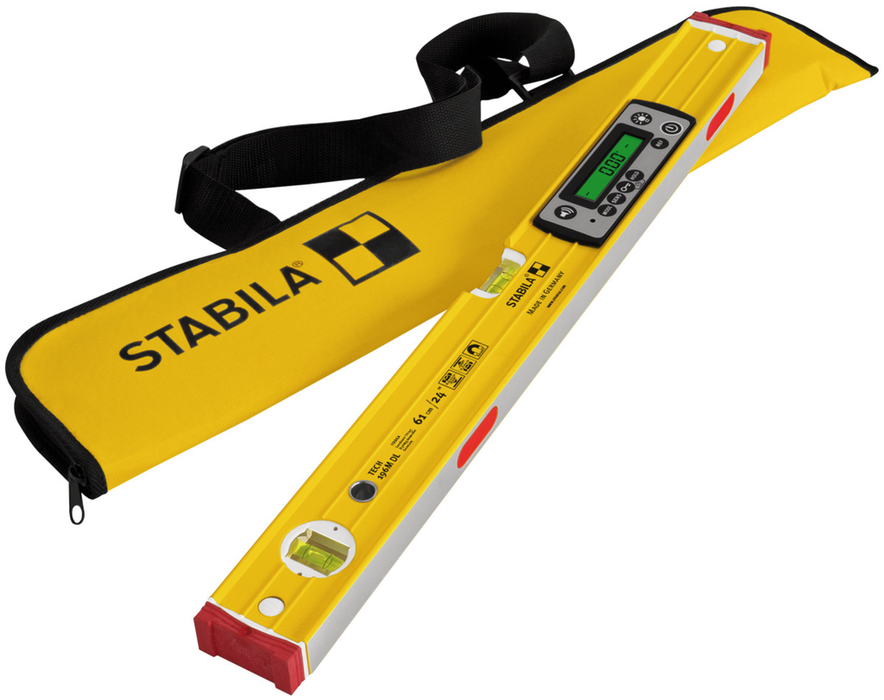

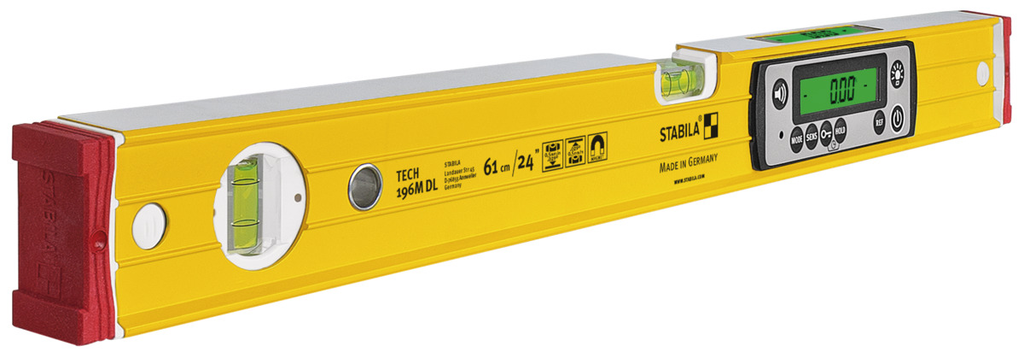

TECH 196 M DL digital spirit level, 24″ / 61 cm
by Stabila
SKU 39520
Sold out
Original price
$349.00
-
Original price
$349.00
Original price
$349.00
$349.00
$349.00
-
$349.00
Current price
$349.00
In-Store Availability
Stock Status:
3+
Location:
Not Specified
In-Store Only — Visit us in Gap, PA to purchase

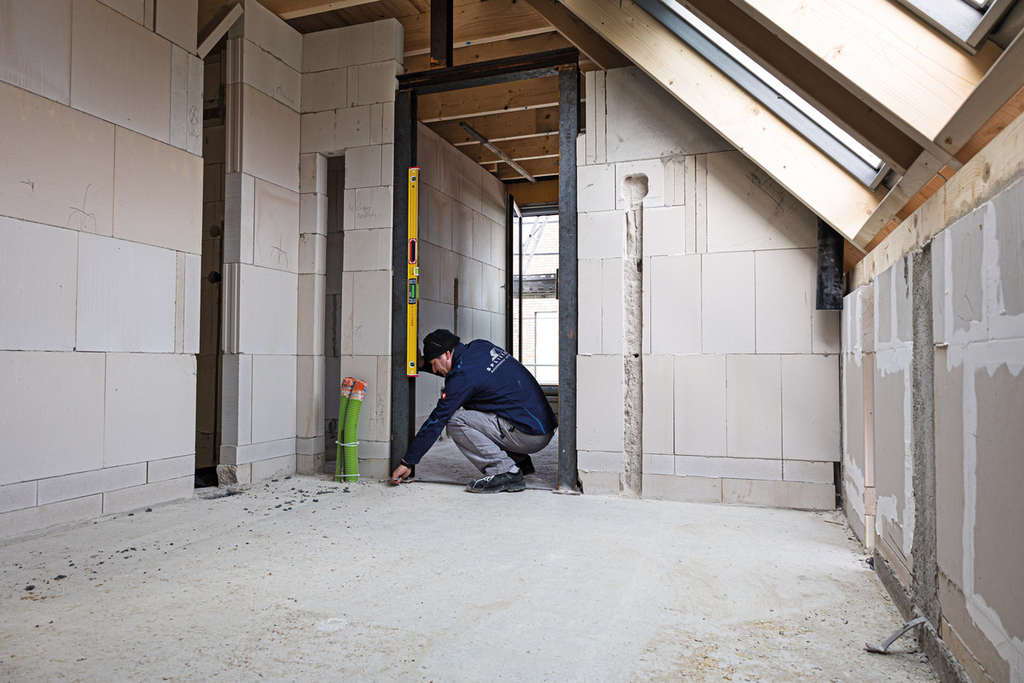

Water, dust, dirt and impacts – tools have to take a lot. The TECH 196 M DL electronic spirit level from STABILA is ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with adjustable illumination, acoustic guidance, extra-strong rare earth magnets and numerous display modes.
Features
- Extra-strong rare-earth magnet system
- CAL-FREE – calibration-free electronics, even after falling or being exposed to temperature fluctuations
- Instant measurement
- Two digital displays with optimal read-out in any application situation
- ULTRA-PROTECT – optimum protection against dust and water in accordance with IP 67
- Acoustic guidance with two different audible signals
Specifications
- Measuring surface, milled: Yes
- Length Incl. Sales Packaging: 670 millimeter
- Accuracy with electronic inclination measurement at 0° and 90° +/-: 0.05 °
- Weight Incl. Sales Packaging: 1123 grams
- Weight Paper/Cardboard: 120,0 grams
- End caps: Removable / Wall Grips / Shock Absorbing
- Measurement accuracy in reverse position: ±1/32in @ 72in
- Colour: Yellow
- Max. operating temperature: 50 °C
- Dimensions Including Sales Packaging: 670*123*52 millimeters
- Max. storage temperature: 65 °C
- Profile: Rectangular profile with ribs
- Material: Aluminium
- Length: 24,00 cm
- Accuracy with electronic inclination measurement at 1° to 89° +/-: 0.1 °
- Number of measuring surfaces: 2 pc.
- Height Incl. Sales Packaging: 52 millimeter
- Height: 6,00 cm
- Number of vials: 2
- Number of batteries: 2 pc.
- Min. operating temperature: -10 °C
- Country of Origin: Germany
- Measuring modes: °, %, mm/m, inch/ft
- Max. storage temperature (Fahrenheit): 149 °F
- Protection class: IP 67
- Min. operating temperature (Fahrenheit): 14 °F
- Min. storage temperature (Fahrenheit): -4 °F
- Magnet system: Rare-earth magnet
- Reverse measurement: Yes
- Width: 3,00 cm
- Number of vertical vials: 1 pc.
- Max. operating temperature (Fahrenheit): 122 °F
- Battery type: AA
- Measurement accuracy in normal position: ±1/32in @ 72in
- Width Incl. Sales Packaging: 123 millimeter
- Number of horizontal vials: 1 pc.
- Min. storage temperature: -20 °C
- Weight: 0,776 kg
- Operating life: 400 h
