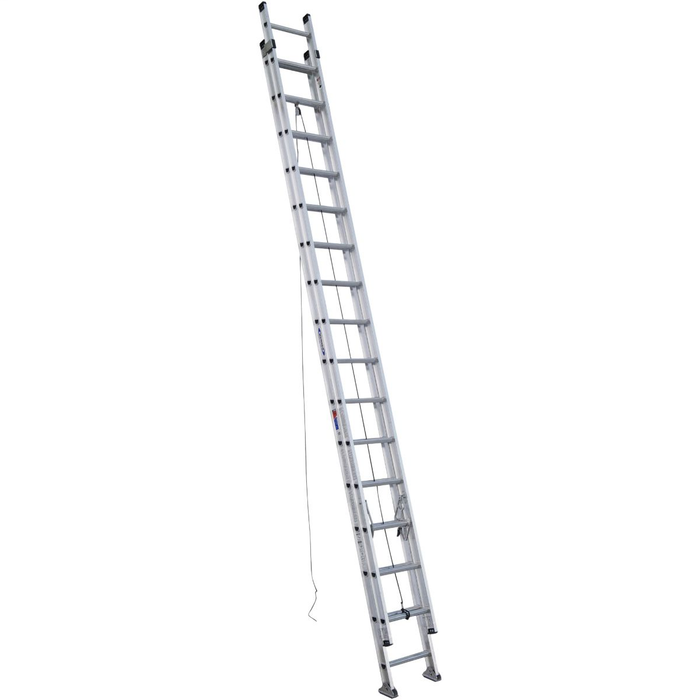

D1532-2 32 ft Type IA Aluminum D-Rung Extension Ladder
The D1532-2 aluminum extension ladders have a duty rating of 300 lbs and have extra heavy duty I-beam side rails. The base and fly sections separate easily and can be used separately. Guide brackets help to ease operation when raising and lowering the fly section. The exclusive ALFLO® rung joint means TWIST-PROOF® performance every time. TRACTION-TRED® D rungs are slip resistant, and the rugged shoes rest flat or are held in spur position with the SHU-LOK® feature. Rugged spring-loaded locks operate smoothly. Mar-resistant end caps protect the surface ladder is resting against.
Additional D1500-2 Series Models
- D1540-2
- D1520-2
- D1528-2
- D1516-2
- D1532-2
- D1524-2
- D1536-2
Features
- Extra Heavy Duty I-beam rails

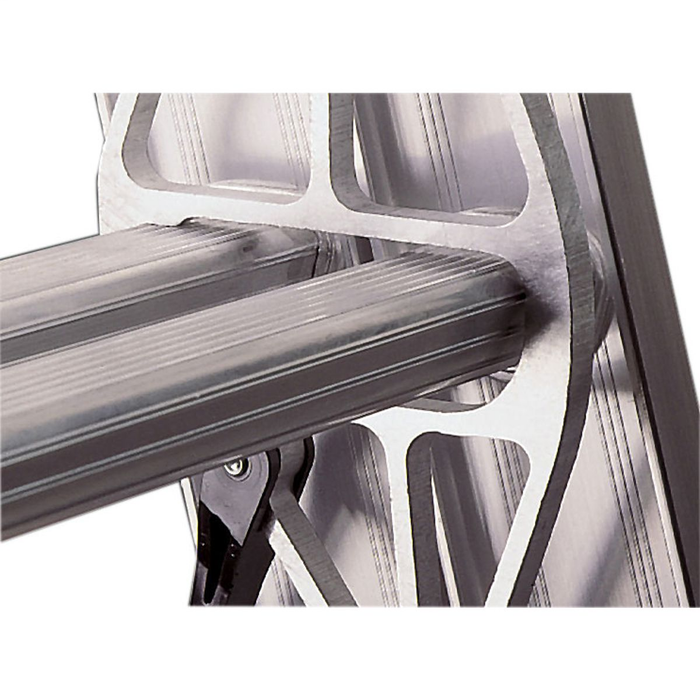

- Exclusive ALFLO® rung joint means TWIST-PROOF® performance
- Mar-resistant end caps
- Guide brackets mounted at the top and bottom of the rail for durability and smooth operation of fly section

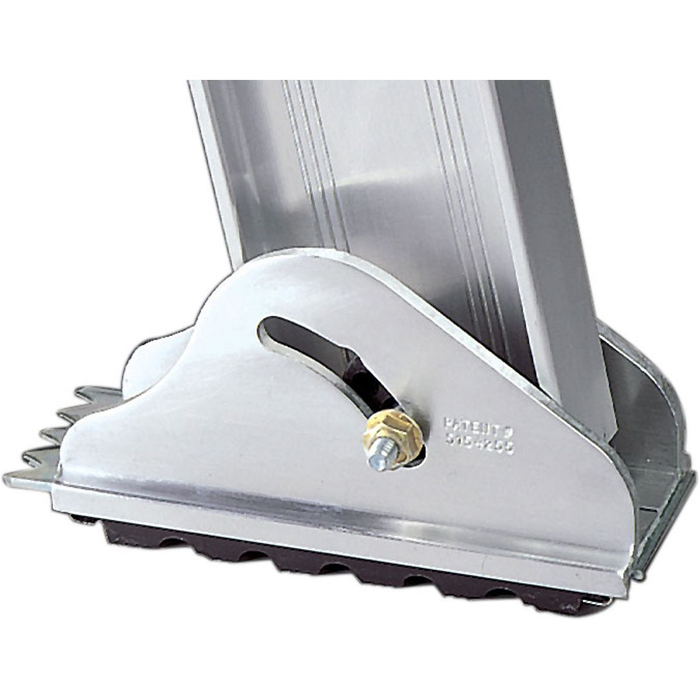

- Rugged shoe rests flat or is held in spur position with SHU-LOK® feature
- Base and fly separate easily for use as an extension or two single sections
- Heavy Duty extruded rung locks are spring loaded to operate smoothly
- Stacked rail design provides increased rung width on fly section
- 1-3/4 in slip-resistant TRACTION-TRED® D-rungs
- Rugged spring loaded locks operate smoothly
- Smooth operating pulley design. Enclosed shape protects pulley
Accessories
- AC22 Paint Can/Bucket Hanger
- AC96 Universal Stabilizer
- AC10-14-02 2 Rung Short Body Ladder Jack
- 97P Adjustable True Grip Stabilizer
- AC10-20-02 2 Rung Long Body Ladder Jack
- PK70-2 LeveLok Base Units
- AC10-20-03 3 Rung Long Body Ladder Jack
- PK70-1 LevelLok Leveler with Base Units
- AC20 Paint Can Hook
Specifications
- Foot Material: Slip-resistant pad
- Certifications: ANSI A14.2 (2007); OSHA
- Size: 32 ft
- Material: Aluminum
- Reach Height: 31 ft
- Type: Type IA Duty Rating
- Number of Sections: 2
- Base Width: 18-1/8 in outside rails
- Approx. Shipping Wt. Lbs.: 67
- Extended Length: 29 ft
- Approx. Cu. Ft. Per Unit: 12.2
- Load Capacity: 300 lbs
- Rung Type: D-Rung
- Max Working Length: 29 ft
- Performance Rating: 4 star
- Approx. Closed Length: 16 ft
- Style: Multi Section
Dimensions
- Fly Width: 18-1/8 in
- Rails Dimension: 3 in
- Flange Dimension: 1-1/8 in
- Rung Dimension: 1-3/4 in
Performance Overview
- Reach Height: 31 ft
- Load Capacity: 300 lbs
- Size: 32 ft
- Approx. Closed Length: 16 ft
- Style: Multi Section
