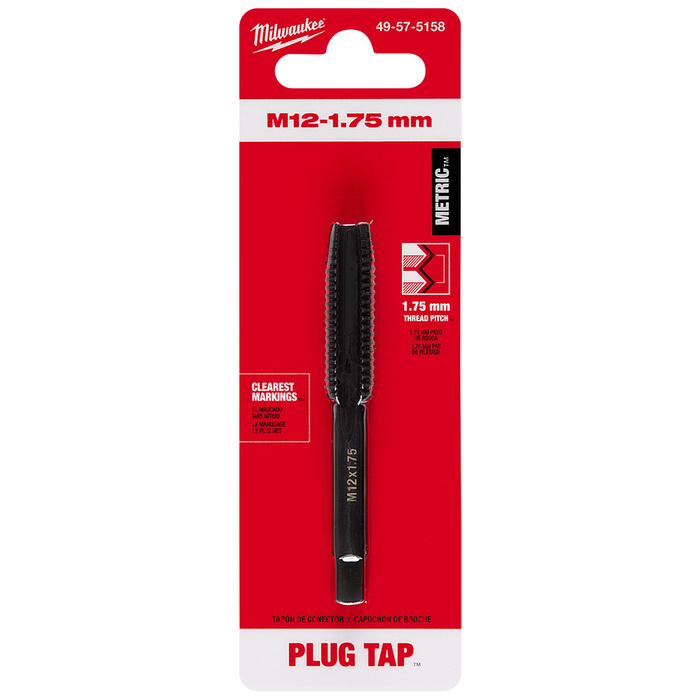

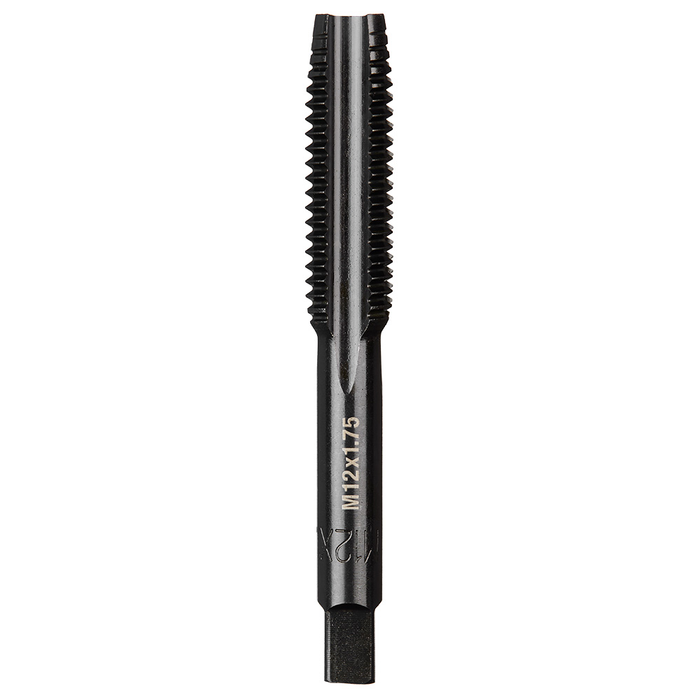

M12-1.75 mm Straight Flute Plug Tap

by Milwaukee Tool
SKU 49-57-5158
Sold out
$9.49 - $9.49
$9.49
$9.49
$9.49 - $9.49
$9.49
In-Store Availability
Stock Status: Limited Stock (1-2?) Location: Aisle J
Get Directions 5270 Newport Rd, Gap PA Call Us (717) 442-8970
Aisle View Aisle view Tap to enlarge
In-Store Only — Visit us in Gap, PA to purchase

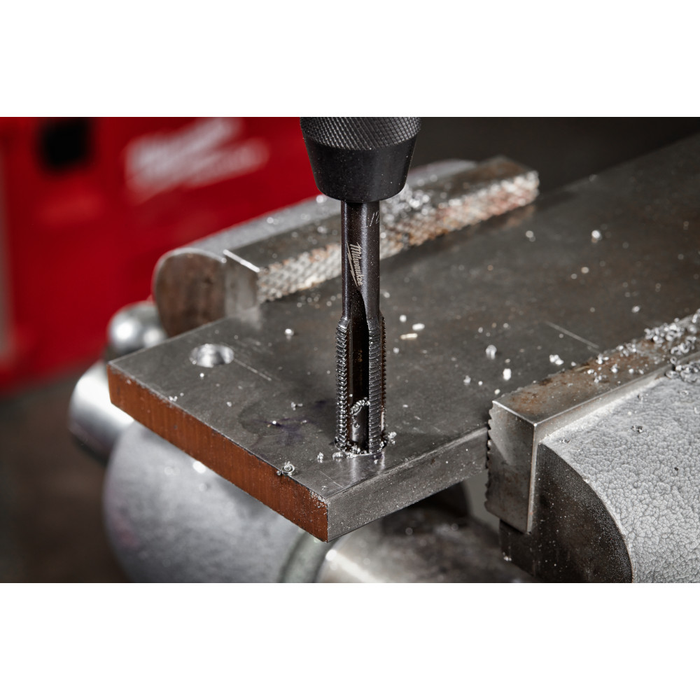

The MILWAUKEE® Straight Flute Plug Taps are precision machined for creating or repairing clean, accurate (internal) threads. The Plug Taps feature long-lasting laser-etched sizing for the clearest markings and include a protective Black Oxide coating for corrosion resistance. The square shank is compatible with all standard tap handles or tap wrenches and is designed for through-hole threading. Engineered for durability, the MILWAUKEE® Straight Flute Plug Taps are designed for cutting threads in the most common metal applications including brass, aluminum, mild steel, and more. For best results, use Plug Taps with cutting fluid.

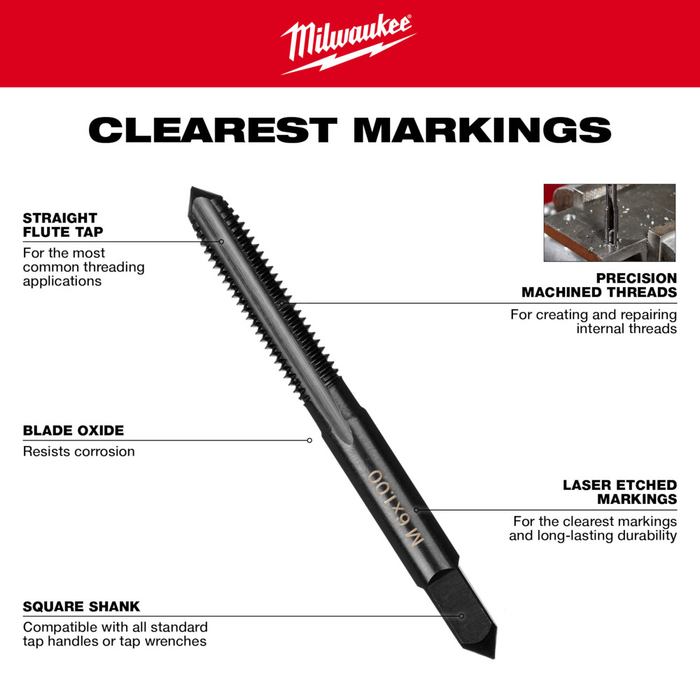

Features

  • Plug Style tap is designed for through hole threading
  • Precision machined for creating and repairing clean, accurate threads
  • Black Oxide coating for corrosion resistance
  • Long lasting laser etch for the clearest markings
  • Hand taps are not recommended for use with power tools
  • High Carbon Steel for durability

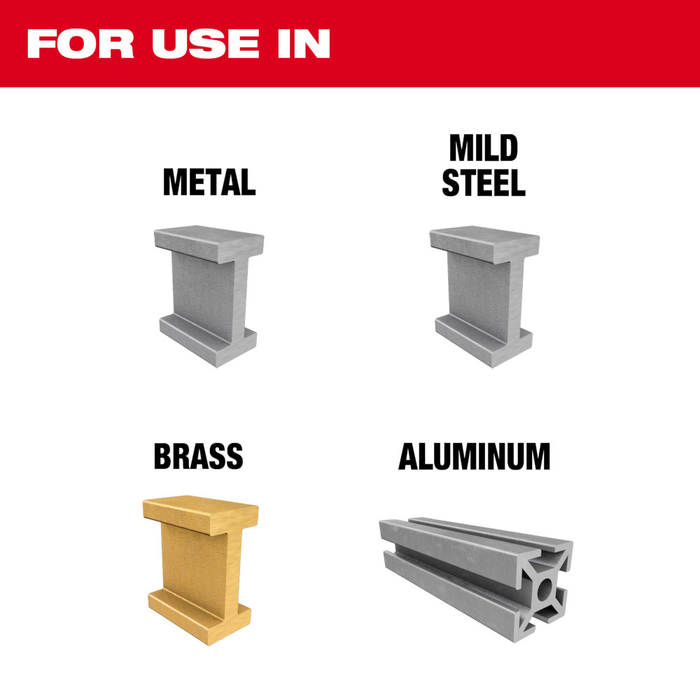

  • Designed for use in metal materials including brass, aluminum, mild steel, and more
  • For best results use with cutting fluid

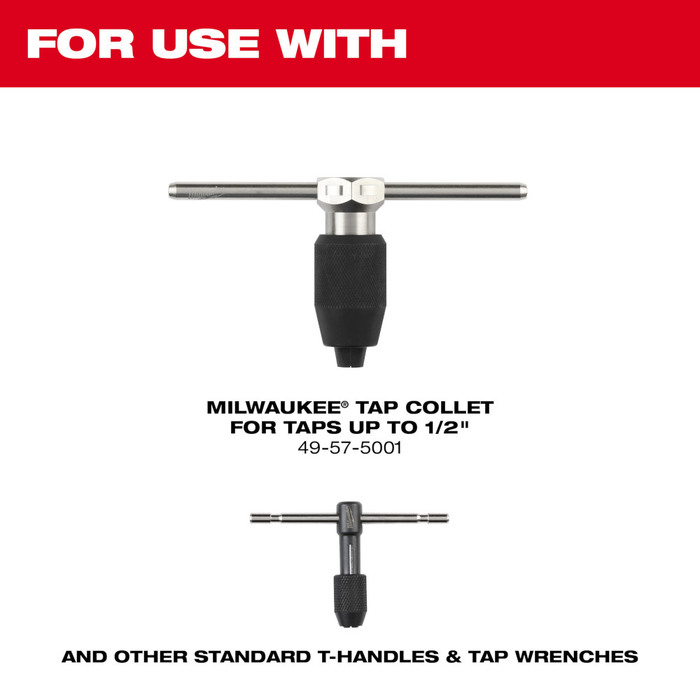

  • Square shank is compatible with all standard tap handles or tap wrenches
  • Straight flute tap style designed for the most common threading applications

Specifications

  • Material: High Carbon Steel
  • Etched / Stamped Size Identification: Yes
  • Surface Coating: Black Oxide
  • Thread Type: Metric Coarse
  • Shank Diameter (mm): 9.525
  • Drill Bit Included: No
  • Type of Tap: Plug
  • Metric Tap Size: 12 mm x 1.75
  • Number of Flutes: 4
  • Unit of Measurement: Metric
  • Overall Length (mm): 82.55
  • Thread Direction: Right Hand Thread
  • Package Quantity: 1
  • Length Of Thread (mm): 38.1

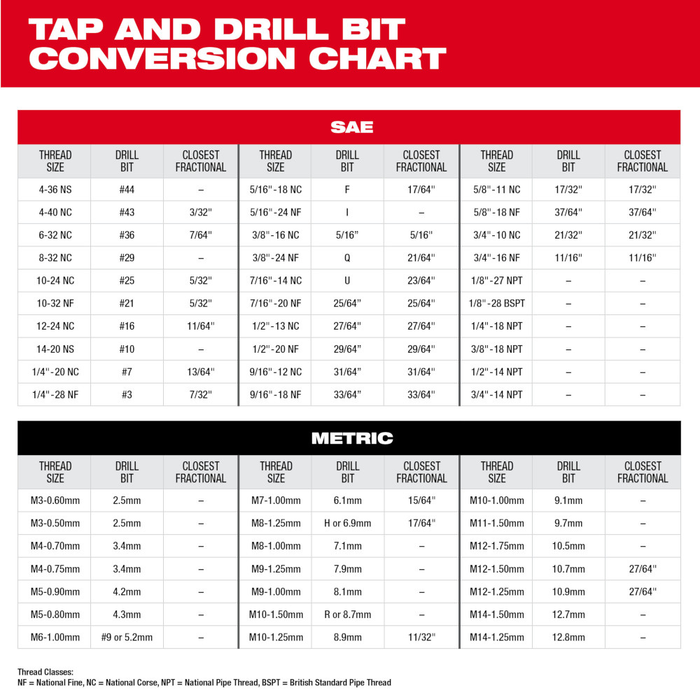

  • Required Metric Drill Bit Size: 10.5 mm
  • Country of Origin: China
