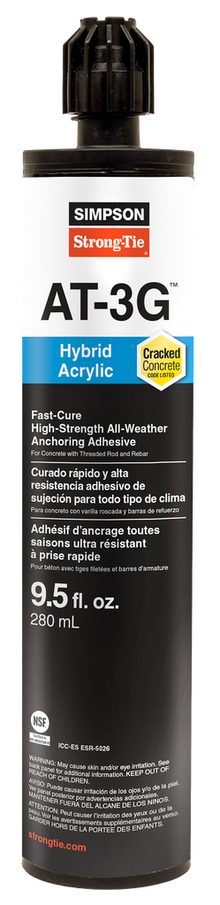

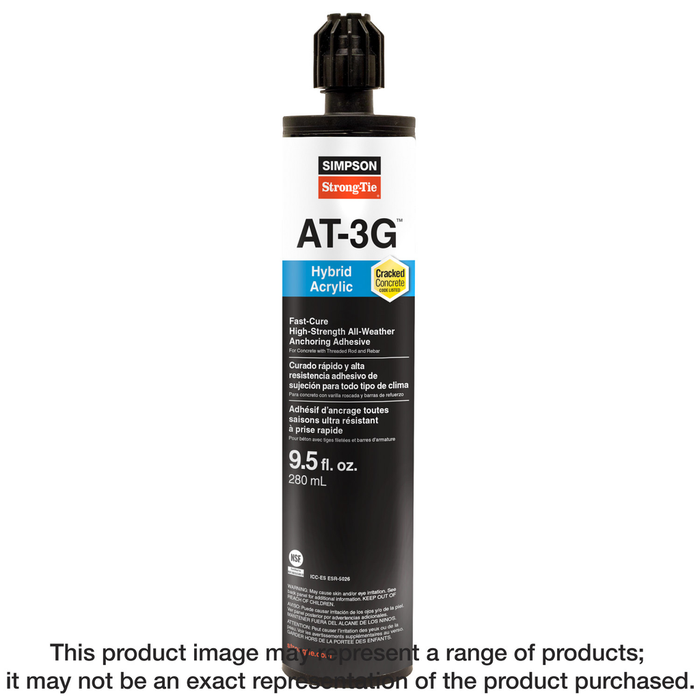

Simpson Strong-Tie AT3G10 AT-3G™ 9.5-oz. High-Strength Acrylic Anchoring Adhesive Cartridge w/ Nozzle

Simpson Strong-Tie® AT-3G™ is a hybrid, acrylic-based adhesive for anchoring threaded rod and rebar into cracked and uncracked concrete. Ideal for cold weather and wet concrete applications, AT-3G dispenses easily and offers a fast curing time for same-day bolt up. It can be specified for a wide range of in-service temperatures, and maintains its strong bond strength in extreme environments for ultimate design and jobsite flexibility. Tested and code compliant with the IBC and IRC, AT-3G hybrid adhesive is easy to install with the conventional blow-brush-blow hole cleaning method.

Features

• Use of a vacuum in lieu of compressed air for hole cleaning
• Installation into oversized holes
• Use in grout-filled CMU construction
• Recognized per ICC-ES AC308 for threaded rod and rebar anchoring, along with post-installed rebar development and splice length design provisions
• Installation in holes drilled with diamond core bits
• Excellent for use in cold weather conditions or applications where fast cure is required
• Conventional blow-brush-blow hole cleaning technique using a wire brush — no power brushing required
• Base material installation temperatures down to 0°F (-18°C)
• Tested in accordance with ICC-ES 308, ACI 355.4 and applicable ASTM test methods
• 9.5-oz. coaxial cartridge

Prop 65

• WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Specifications

• Country of Origin: Germany
• Depth: 2 in
