Product ID: ROOFBRKTHDA

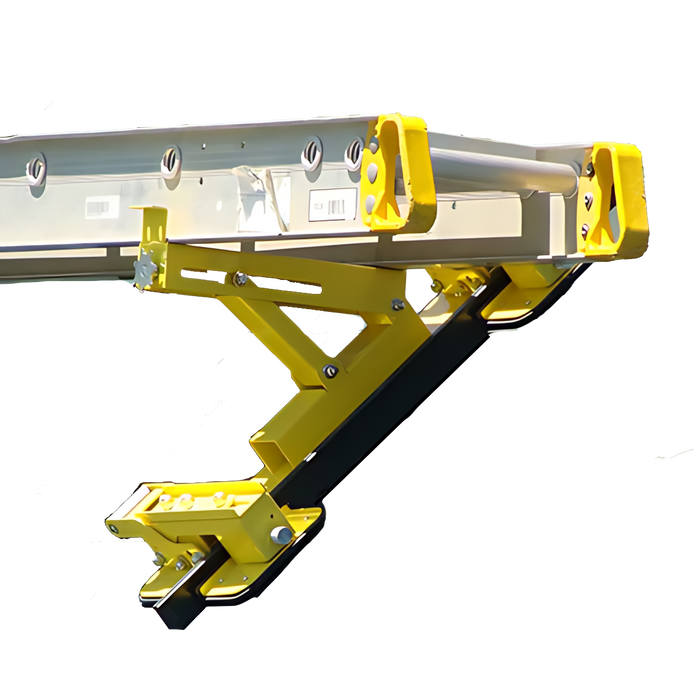

Standing Seam Roof Bracket Rental for Aluminum Planks, 1 Bracket
Details of Rental Item
Each Alum Plank Standing Seam Bracket
Model BIGBOYSALU Metalplus
Roof Slope Adjustment
3/12 to a 24/12 slope
Weight Capacity
300lbs per bracket (wet or dry)
Weight Each
25 lbs
DELIVERY ESTIMATE
GET RATE
Rental Rates
1/2 day
$45.00
Day
$60.00
week
$120.00
28 days
$240.00
Selected accessories will also be added to cart
Click here to send a reservation request or to get more information.
Request Reservation
This system is rented per individual bracket.
Designed for use with 12" Aluminum Plank.
One Bracket required every 12 feet of span. Brackets at end of span must be placed between 6 and 12 inches from end of plank. (no more, no less)
Designed strictly for a 12" aluminum plank
Used by solar installers, carpenters and masons for a more comfortable, long-lasting stationary workplace
Adjusts from a 3/12 to a 24/12 slope
A double-start crankshaft system allows you to adjust the tool one degree at a time
High-grade powder coating prevents corrosion
Custom designed rubber pads prevents roof damage
Installs from a 1" up to a 2" Snap-Lock or mechanical standing seam metal roof
Once the aluminum plank is installed, it automatically locks itself in place
Easy one hand installation and removal
Rated for 300 lbs. wet or dry.
Follows OSHA requirements with proper fall-arrest systems and tie-downs

. Sometimes referred to as a roof jack.
