Product ID: ROOFBEND
NEW!
Roof Standing Seam Eave Bending and Eave Locking Tool Kit
Rental Rates
1/2 day
$38.00
Day
$50.00
week
$150.00
28 days
$375.00
Selected accessories will also be added to cart
Click here to send a reservation request or to get more information.
Request Reservation

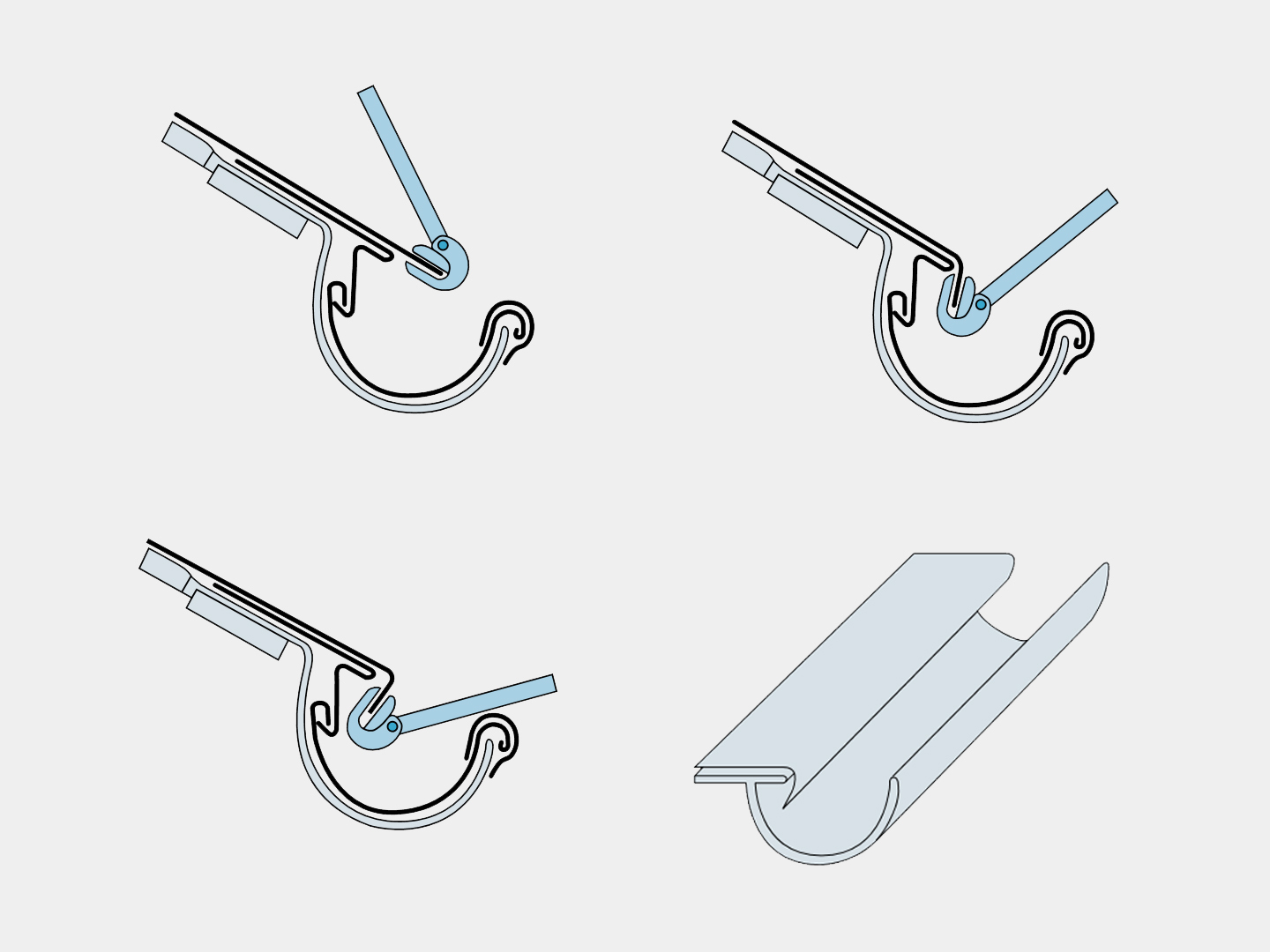

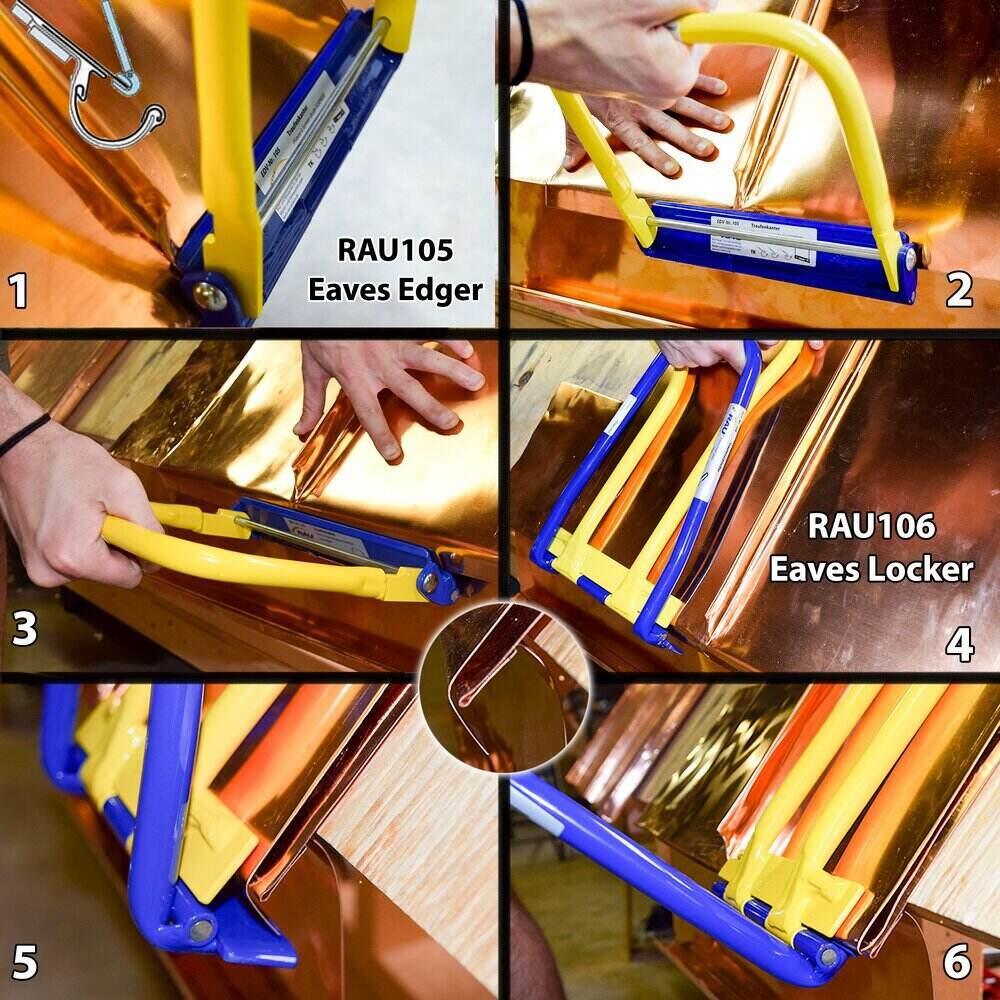

Standing Seam metal roof eave bending and crimping is done with two tools, the Eaves Edger Folder and then the Eaves Seam Locker/Crimper

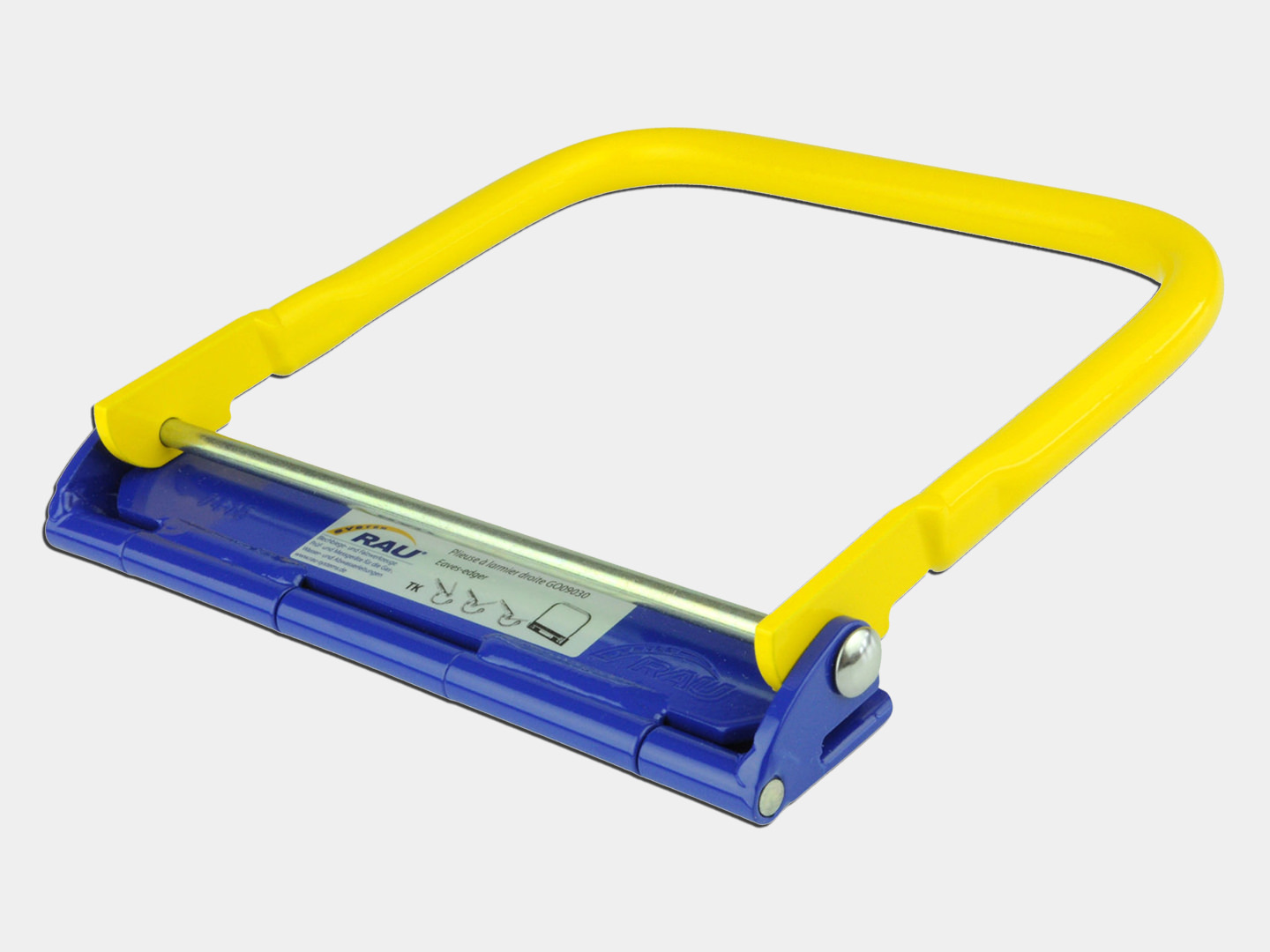

RAU 105 Eaves Edger
Spring loaded leveraged action grips material for starting the panels bend around a drip edge
Jaw Width: 9-3/4"

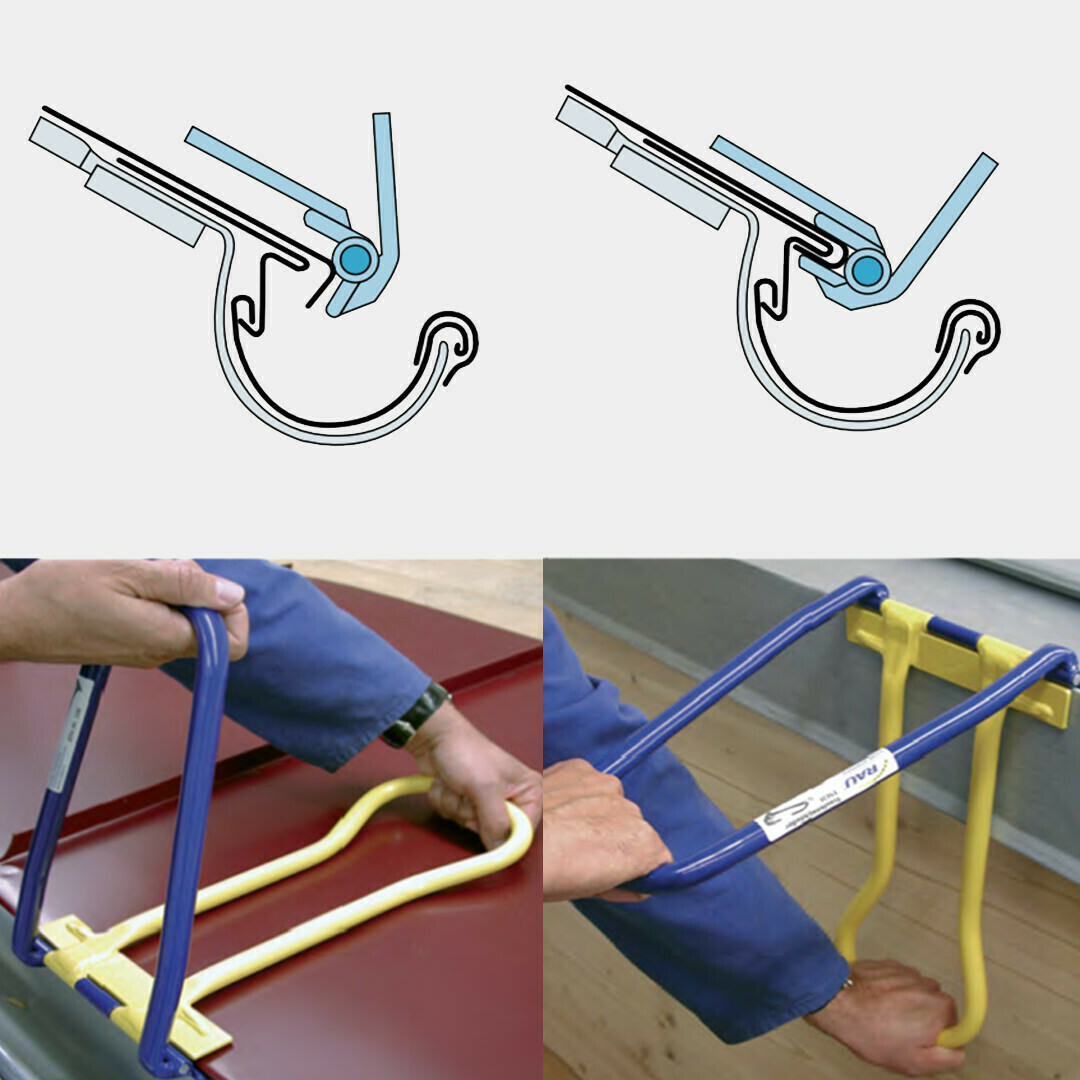

RAU 106 Eaves Locker
Used for locking the panel onto the drip edge after the bend has been started with the RAU 105 Edger
Crimps the panel for a tight lock and desirable finish
Jaw Width: 8-1/2"

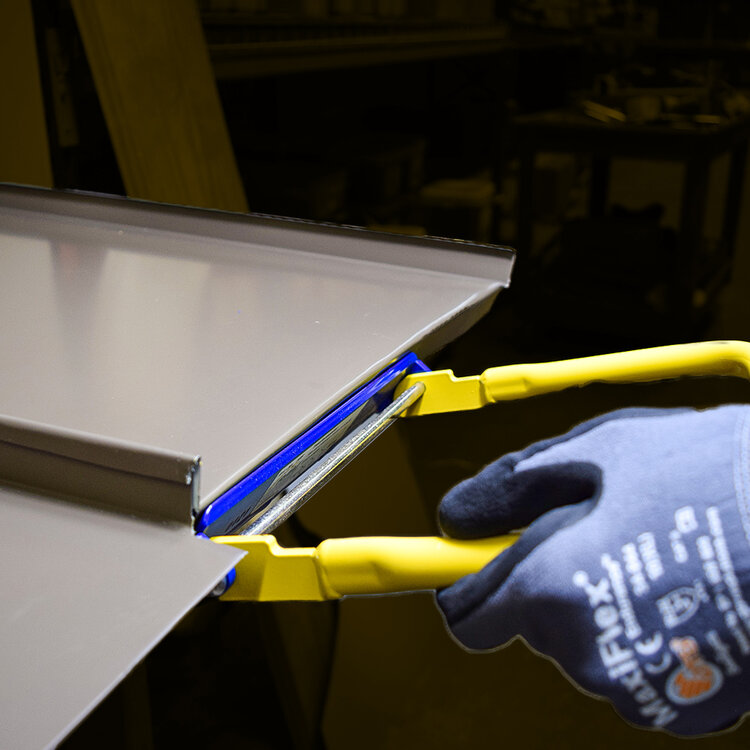

The RAU105 Spring loaded leveraged action provides added strength in gripping the material
Starts bending the drip edge in excess of 90°
Also used for the first step in bending panels for dormer windows
Tool Width – 9 3/4"
1” insertion depth
Overall Length – 9 1/2”
Max thickness – 24 gauge, .040 aluminum, 20oz copper

The RAU106 is used to lock the panel at the drip edge resulting in a clean looking hemmed panel edge
The tool is often used in conjunction with the RAU105 to complete locking the panel at the drip edge
Panel edge must be bent approx. 90° for RAU106 to perform crimp
Also used for forming the final lock for dormer windows
Faster and a tighter crimp than hand seamers
Tool Width – 8 1/2”
Overall Length – 15”
